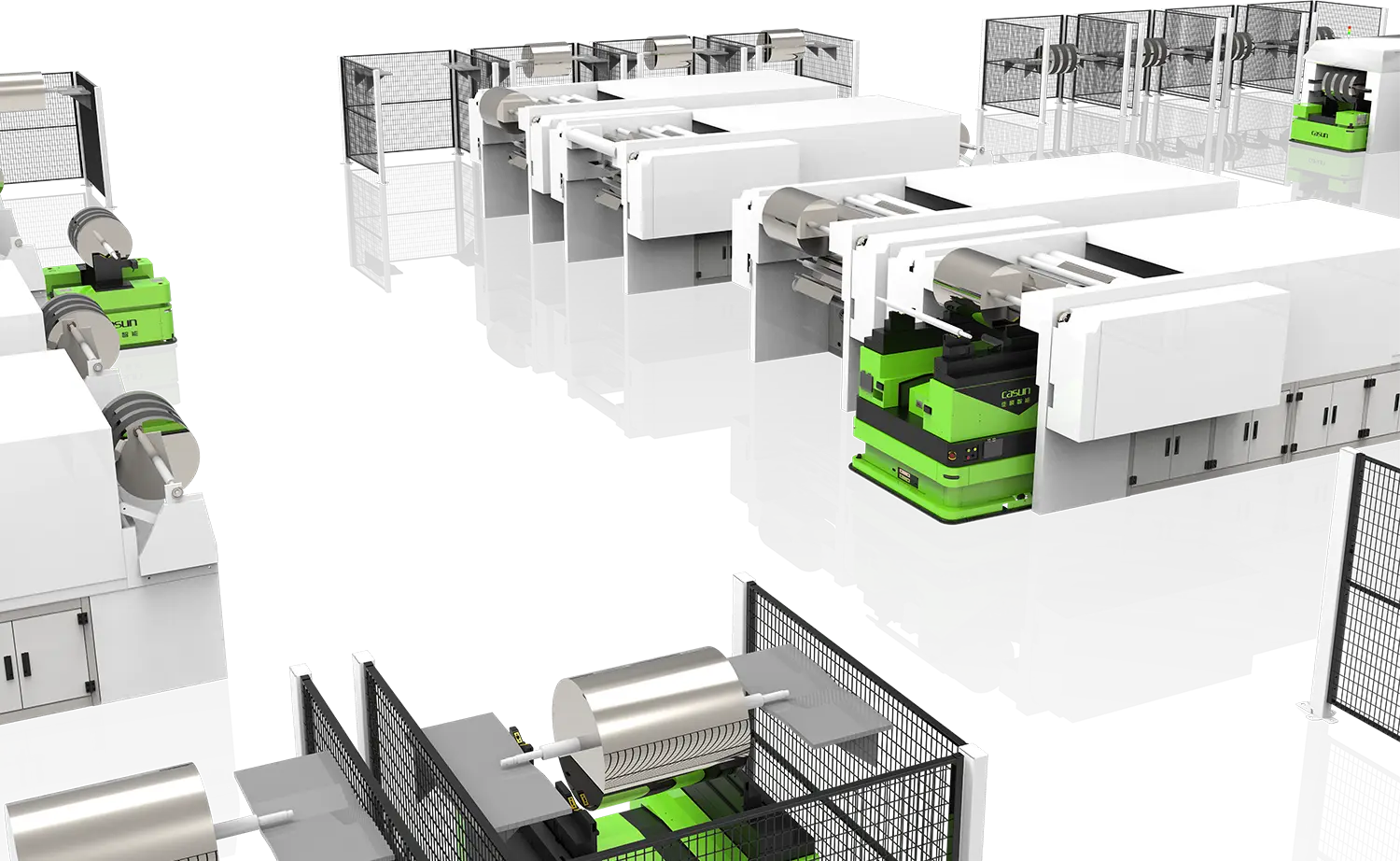

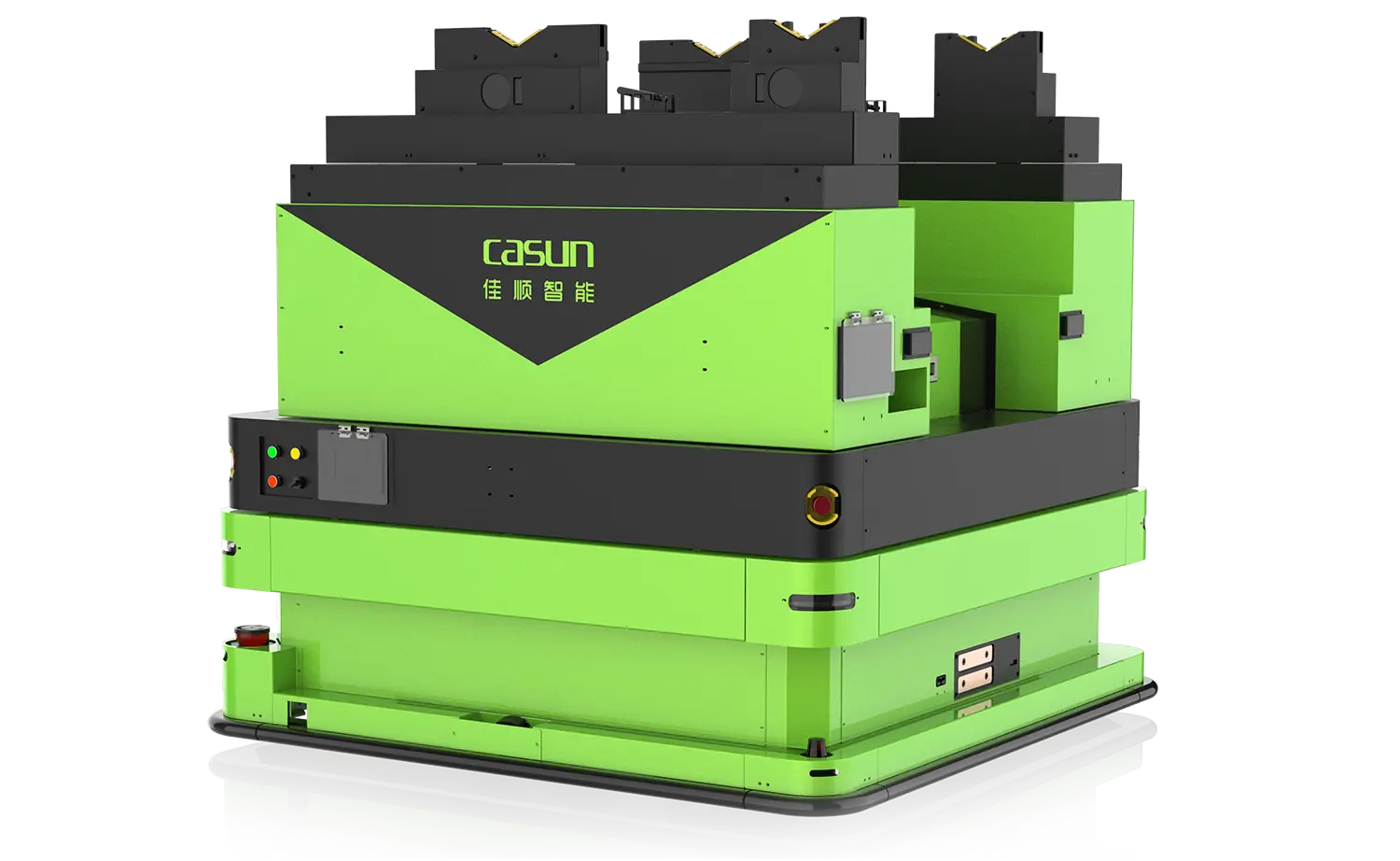

CCM-51 is a double fork lift AGV,At present, the most widely used is the front-end process in the cell production workshop of the new energy lithium battery industry, which is used for foil and unslit pole roll handling.
Working method: A pair of forks are placed with full rolls of material, and the other pair of forks are placed with empty rolls. The two states are alternately operated at the same connection port to realize automatic loading and unloading of materials.
| Basic parameters | Dimensions | L1800*W1800*H1800(mm) |
| Maximum load | 1800kg | |
| Rotation diameter | 2435mm | |
| Docking height | 1800±50mm | |
| Navigation performance | Navigation | Laser SLAM / QR code navigation |
| Navigation accuracy | ±10mm | |
| Stop accuracy | ±5mm | |
| Docking accuracy | ±1mm | |
| Athletic performance | Walking direction | Forward, backward, turn, rotate, traverse |
| Drive mode | Steering wheel drive | |
| Maximum walking speed | 1.0 m/s | |
| Battery performance | Battery Type | Lithium battery |
| Charging method | Ground charging / Side charging | |
| Charging time | Charging time after full discharge≤1.5H | |
| Rated battery life | 6H | |
| Network performance | Communication method | WiFi/5G |
| Protection performance | Safety Alert | ●Light warning ●Voice broadcast |
| Safe sensing range | ≤3m adjustable | |

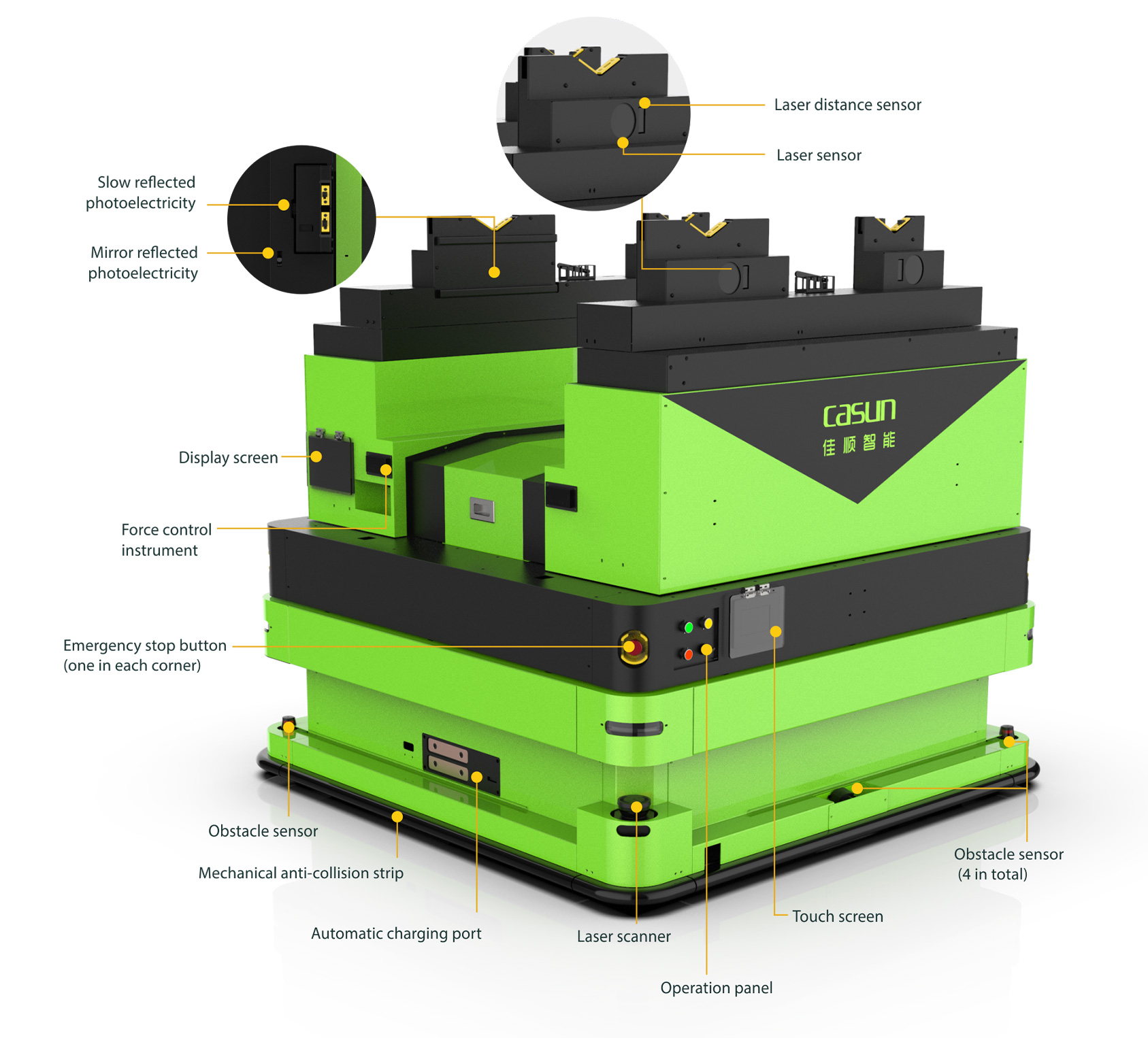

| Security | ● 5 Obstacle Detection Sensors; ● Mechanical Anti-collision Structure; ● Emergency Stop Switch |
ouble-pronged design is adopted to complete the exchange of empty and full, improve work efficiency and reduce equipment downtime waiting time;
SLAM navigation or QR code navigation can be used;
automatic docking with line-side equipment to realize unmanned operation of the process;
high-precision control, the docking accuracy with the equipment is ±1mm.
