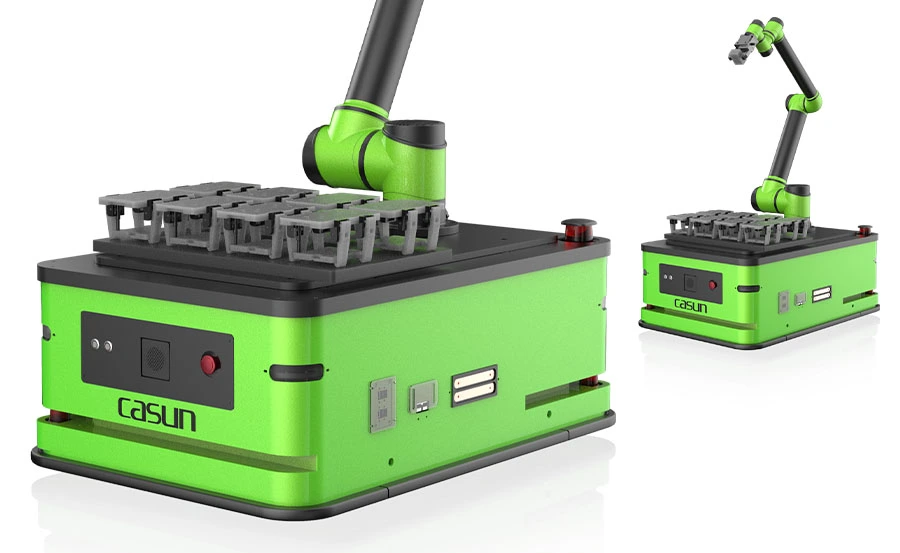

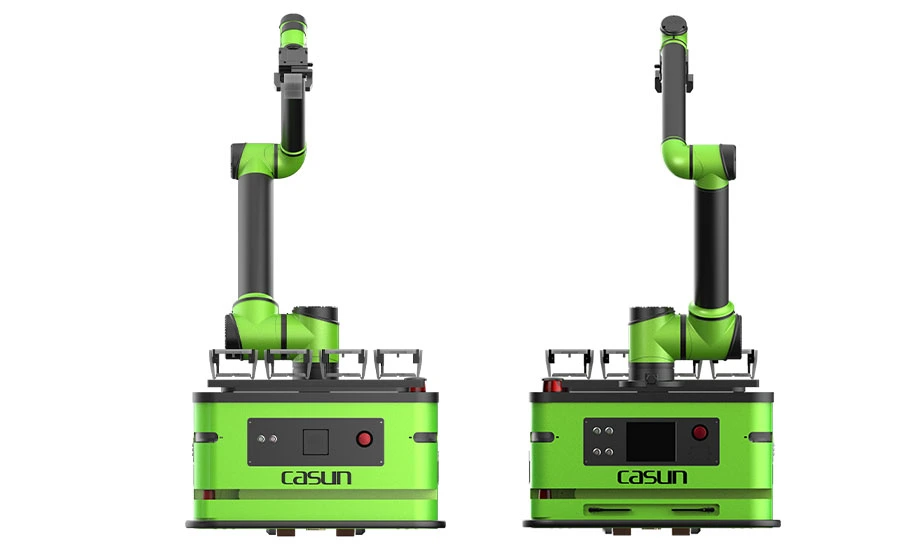

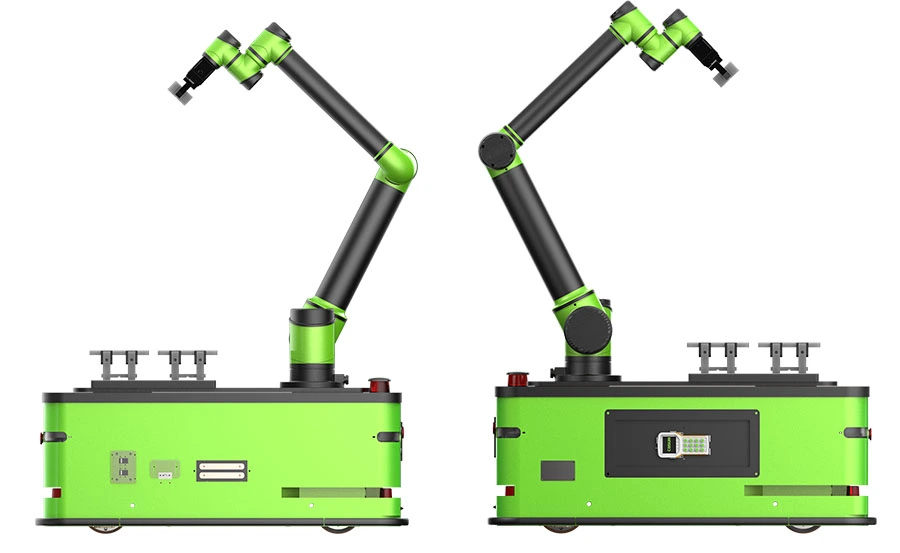

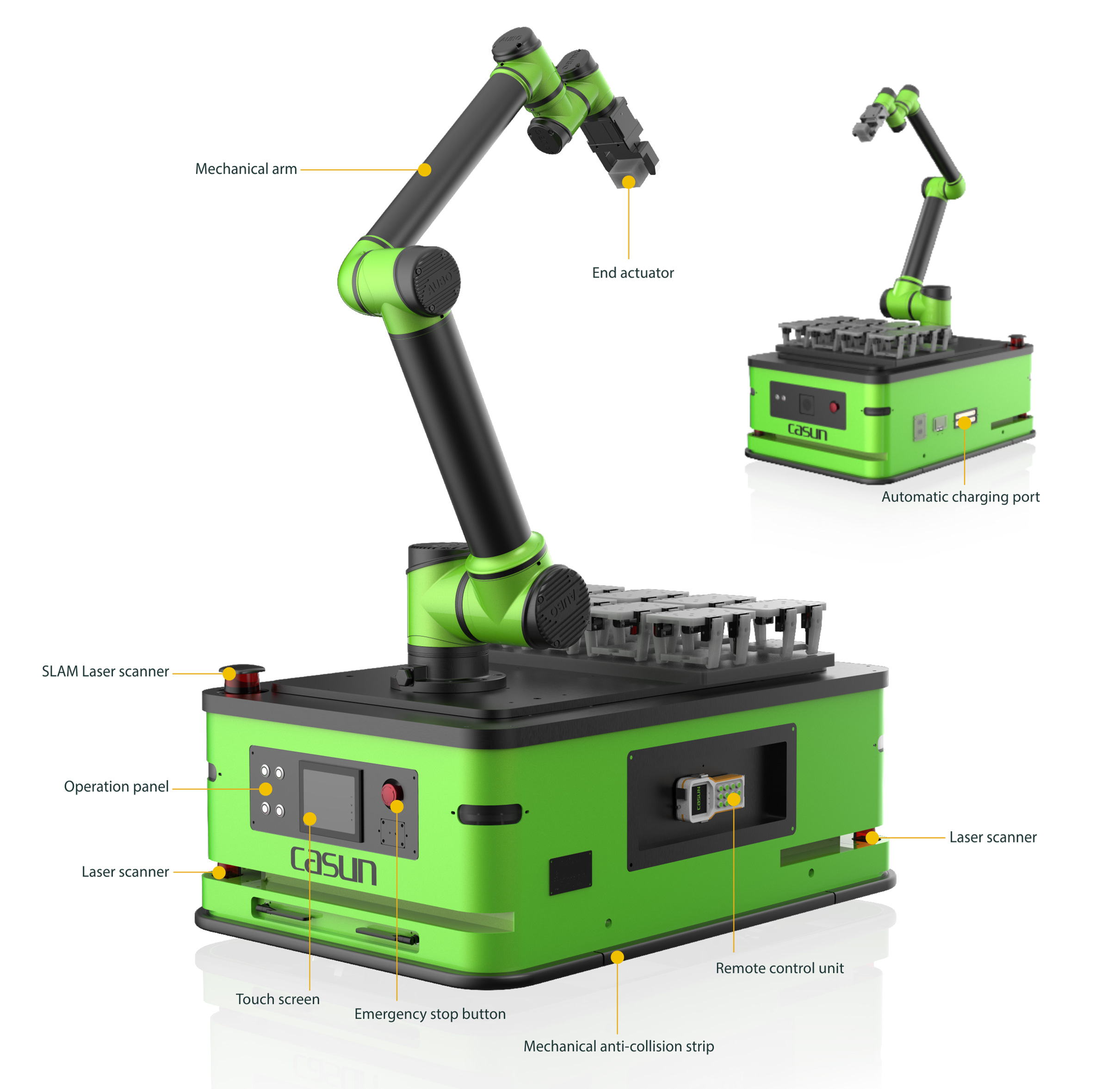

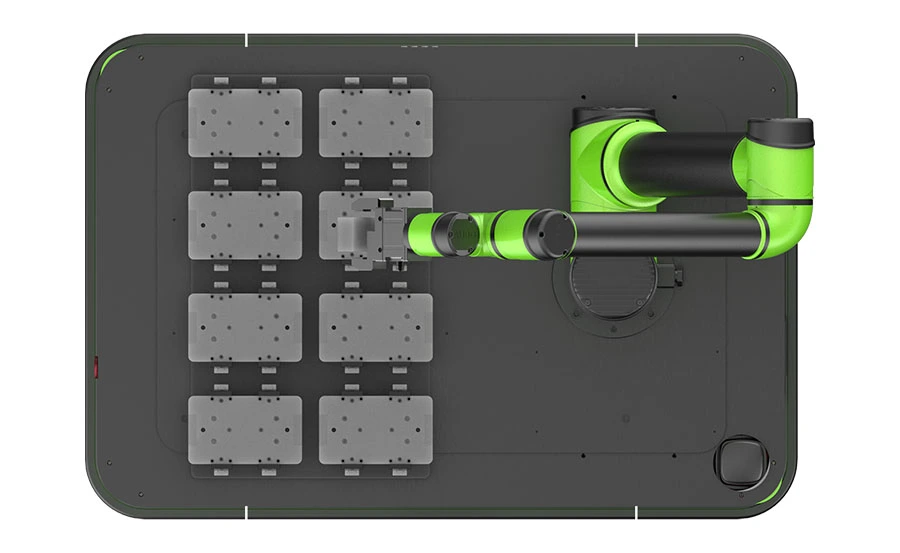

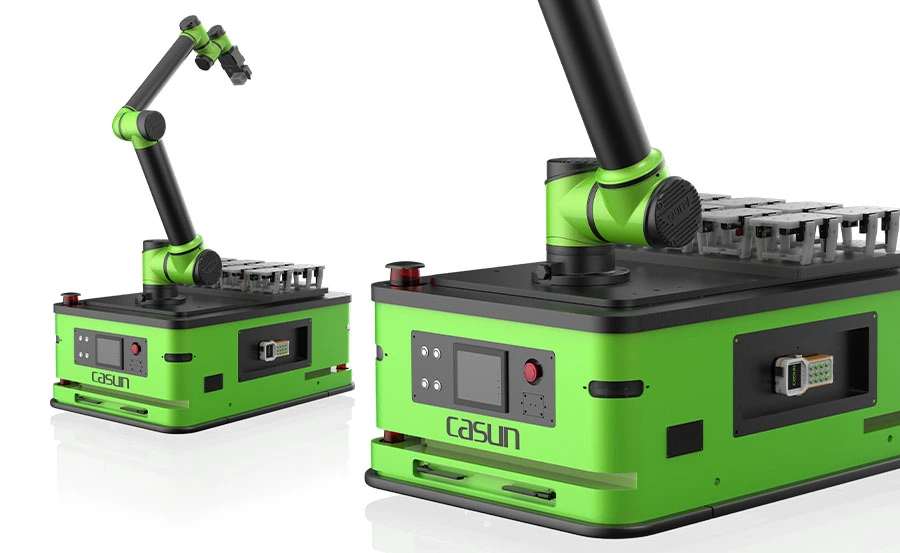

C6-21 is a QR code composite type hybrid AGV robot navigation, by the AGV chassis, power transmission drum, ABB robot, is suitable for factory automation, storage and sorting, automated supermarket goods, and many other scenarios, for a scenario in material handling, loading and provide automation, flexible support sorting, greatly improve transport efficiency.
| Dimension | L2316*W1120*H1027（mm）Manipulator mounting height | Max moving speed | 1.2 m/s |
| Arm load | 500kg | Max climbing capability | ≤3° |
| Max load capacity | 10kg | Battery type | Lithium battery |
| Body weight | 1500kg | Charging mode | Side charging |
| Rotating diameter | 2600mm | Charging time | ≤1H |
| Navigation mode | SLAM navigation | Rated endurance | 6H |
| Navigation accuracy | ±10mm | Communication Method | WiFi / 5G |
| Stop accuracy | ±10mm | Safety warning | ●Light warning ●Voice broadcast |
| stop angle accuracy | ±1° | Safe sensing range | ≤3m adjustable |
| Moving direction | Forward, backward, turn, rotate, transverse moving | Safety protection |
|
| Drive mode | Steering wheel drive | Working temperature | -10℃~45℃ |
| Acceleration | 0.35 m/s² | Working Environment | No dust, no flammable/explosive/corrosive gases |
The composite robot integrates automatic handling and sorting functions, effectively replacing manual, and realizing highly intelligent factory.
The intelligent management system independently developed by Casun can realize the task management, delivery and traffic control of all AGVs connected within the network; You can increase or decrease the number of AGVs at any time and support multiple types of AGVs in the same scenario.
When the power is low, go to the charging station for automatic charging; and it can achieve all-weather response, improve production efficiency.

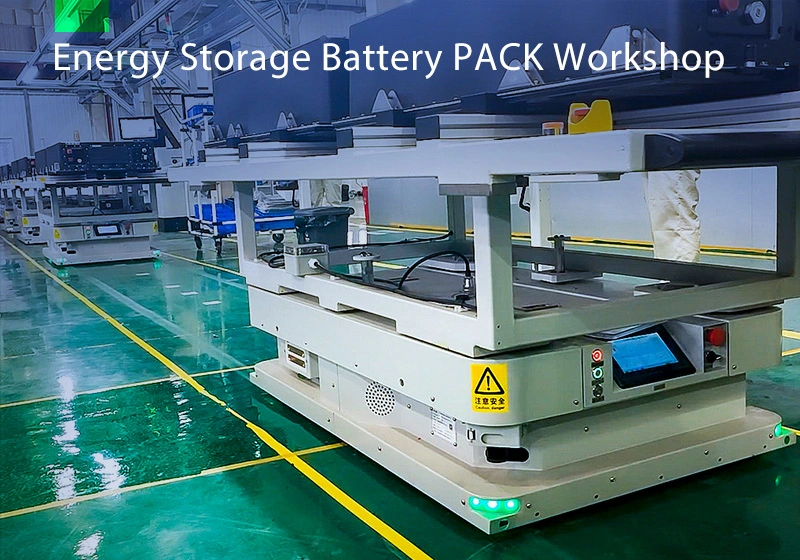

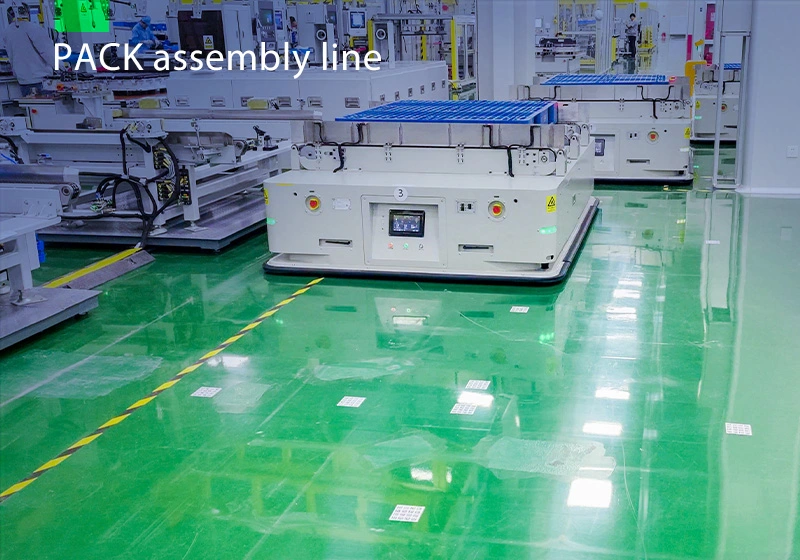

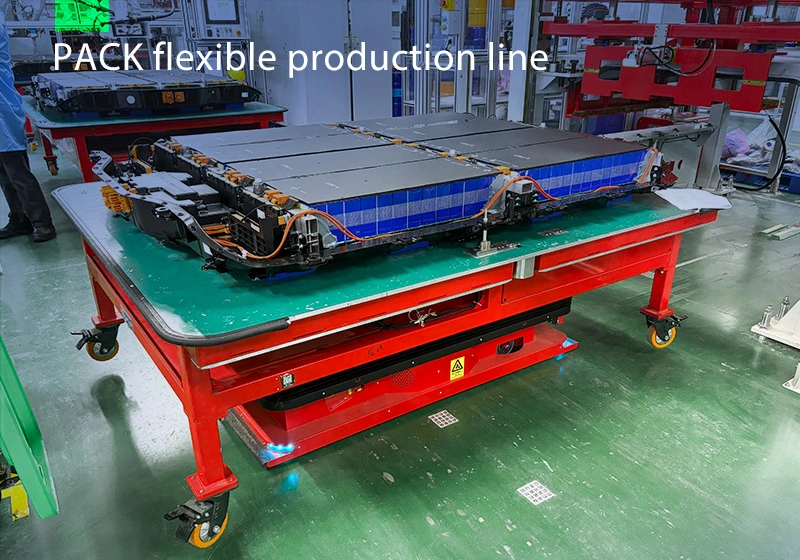

(1).webp "New Energy Industries-Energy storage battery PACK workshop")
