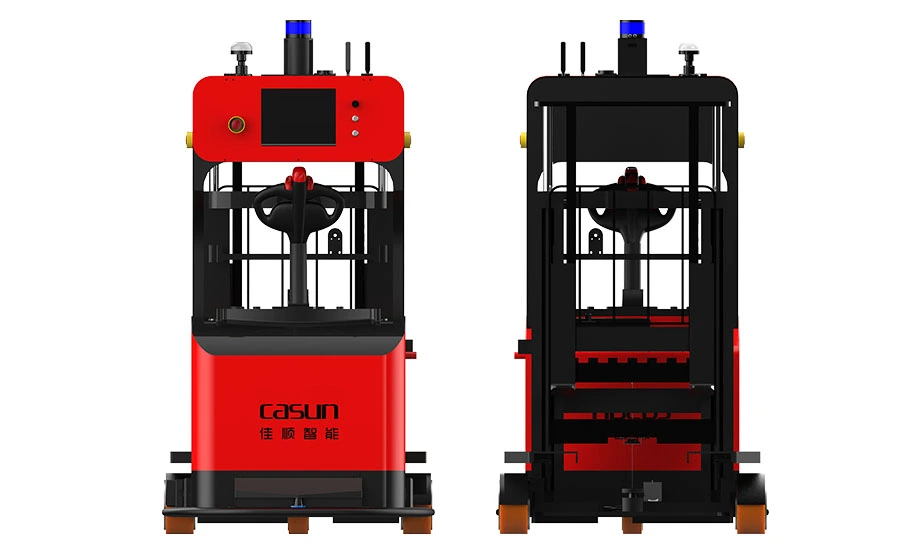

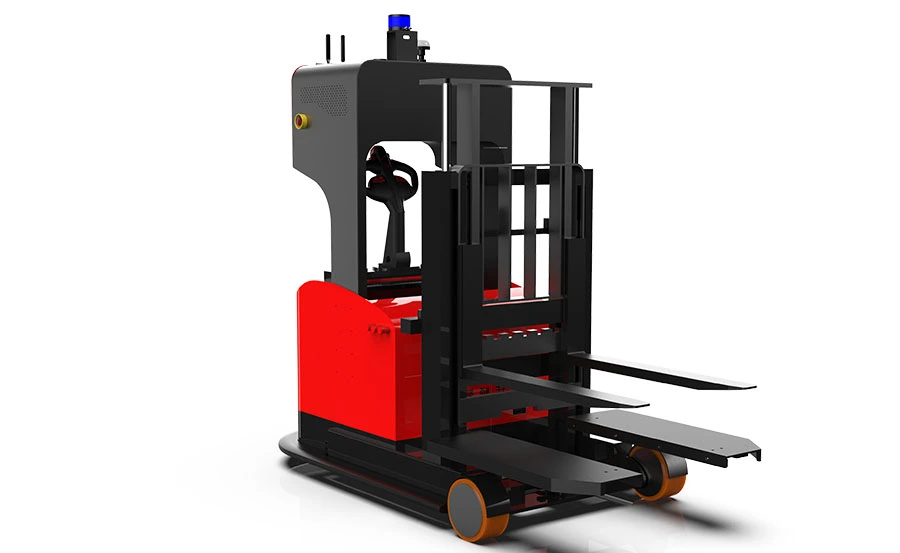

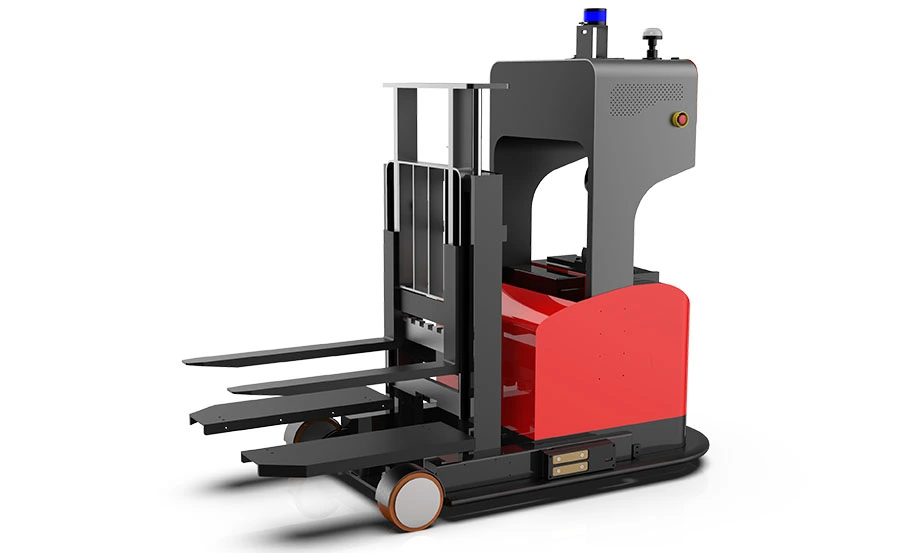

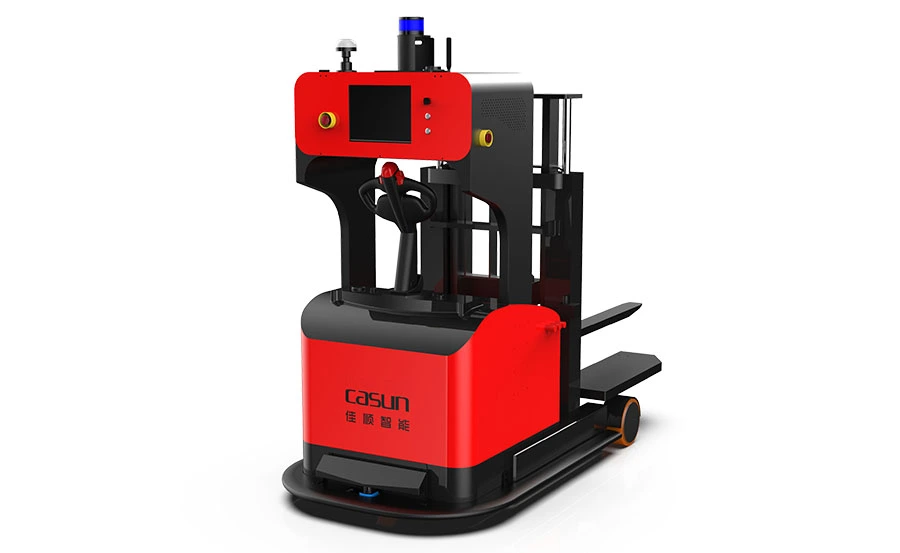

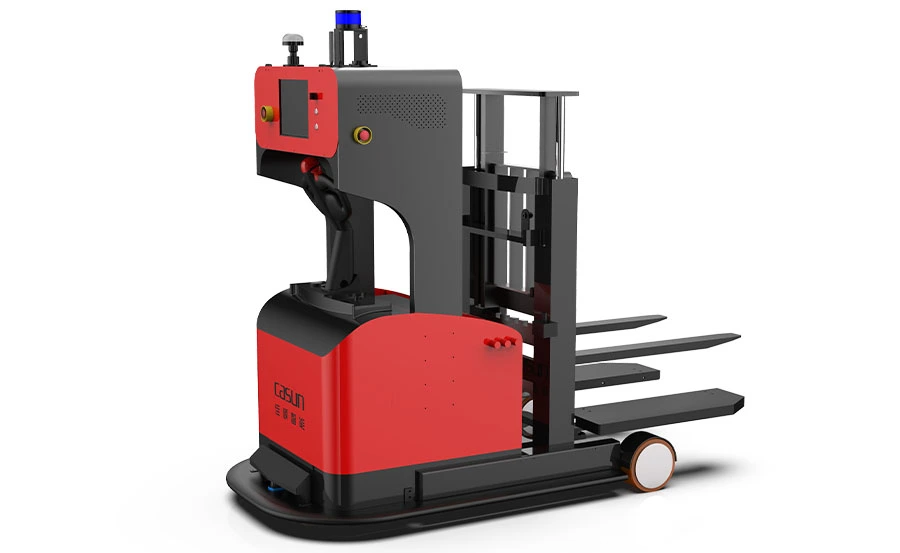

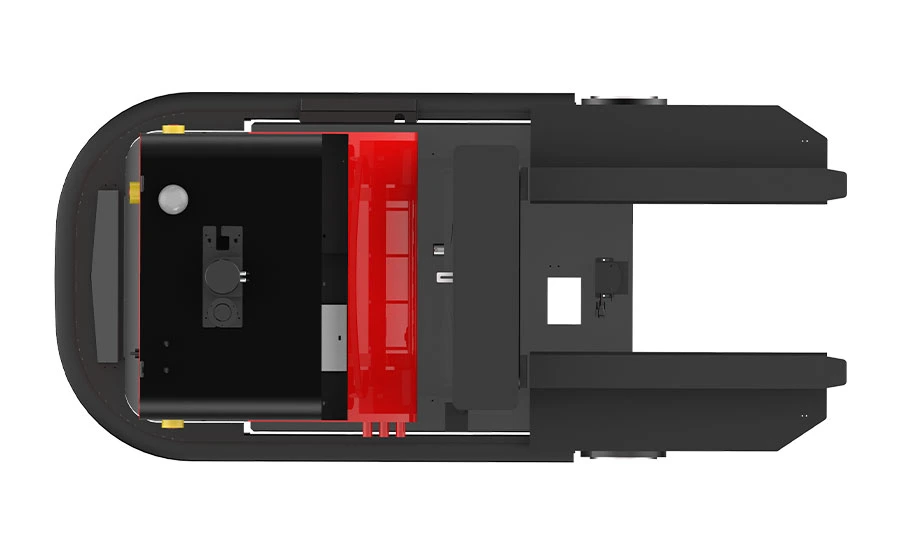

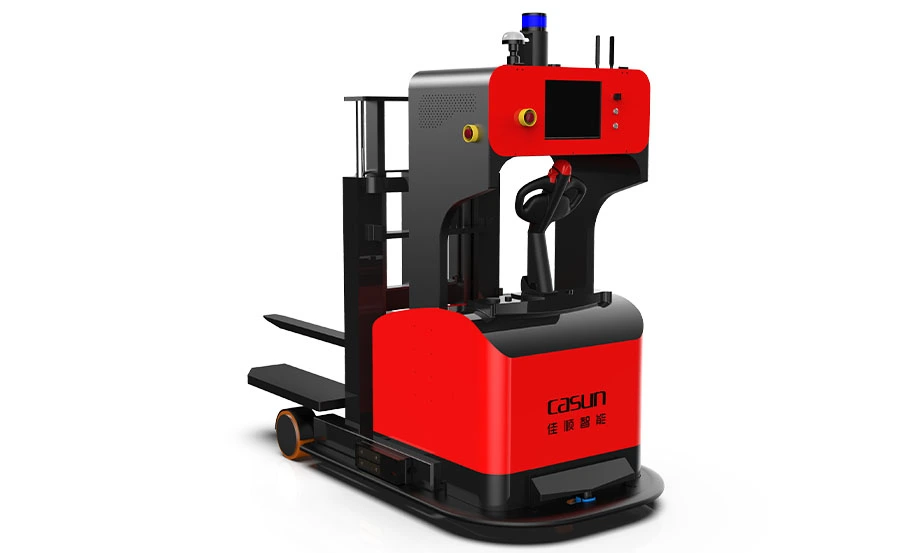

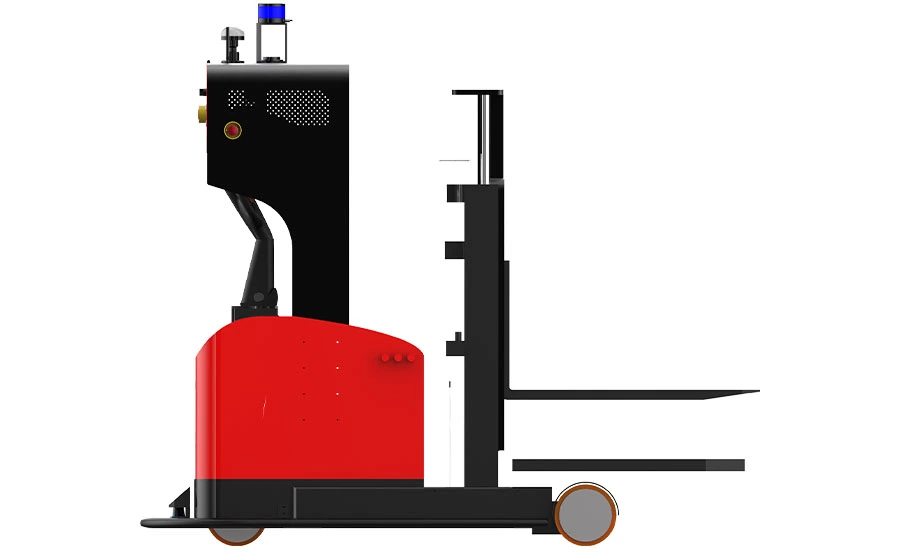

C5-Q2 is a forward-moving laser navigation forklift AGV. The gable fork can be telescopic to avoid the interference between the machine and the forklift legs when taking and placing materials.
| Guidance | Laser navigation | Lifting height | 2900mm |
| Dimensions | L2400*W1116*H2100(mm) | Driving method | Steering drive |
| Traveling direction | Forward, backward, 0~90 degree turn | Charging method | Auto charger(Side type) |
| Load capacity | 1500KG | Battery | Lithium battery |
| Travel speed | 0~72m/min | Communication | WiFi/5G |
| Turn radius | 1800mm | Safety alarm | Sound and visual warning |
| Guidance accuracy | ±10mm | Safety detecting range | ≤3m(adjustable) |
| Stopping accuracy | ±10mm | Protections | Front obstacle detection sensor+mechanical anti-collision bumper+emergency stop switch |
Fork door frame can be telescopic as a whole, wide range of application
The lifting height can be up to 2900mm, with the door frame lifting device, which can take and put materials in a higher position.
Laser navigation, simple and flexible site layout.
Multiple AGVs synchronize with each other, which applies to complex material handling scenarios.
Independent operation according to scheduling instructions, without manual intervention in the production process.
Have perfect fault self-check function, and have remote fault diagnosis and self-recovery function.
When the power is low, it can go to the charging station for automatic charging. No manual intervention to achieve 24 hours of operation.
Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning to ensure safe operation.
