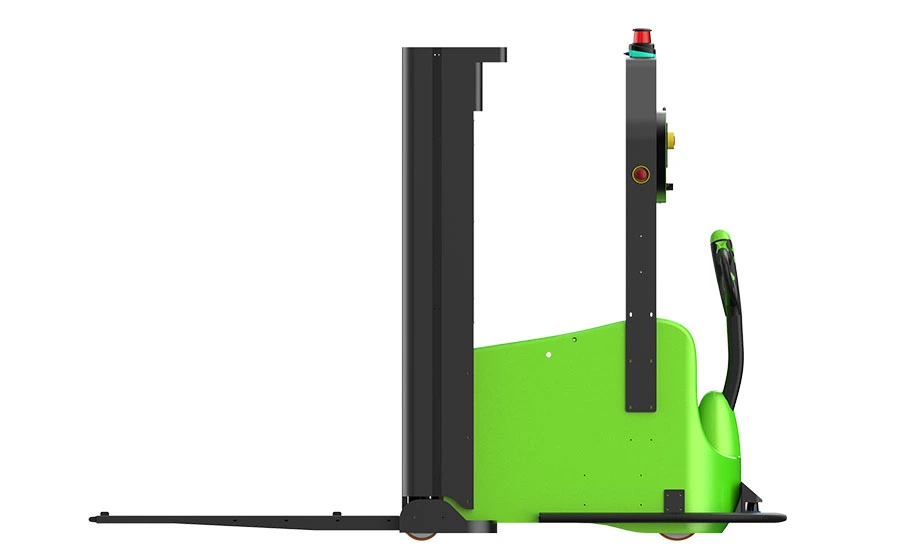

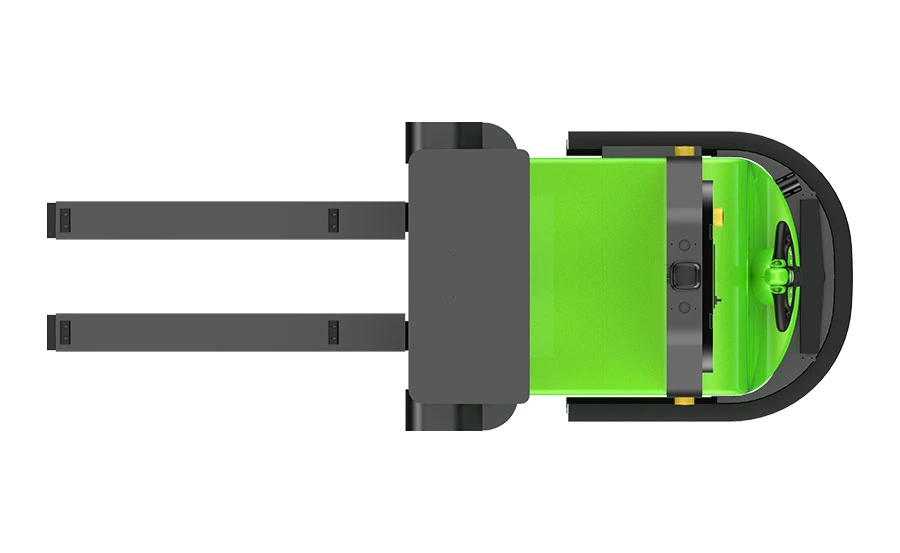

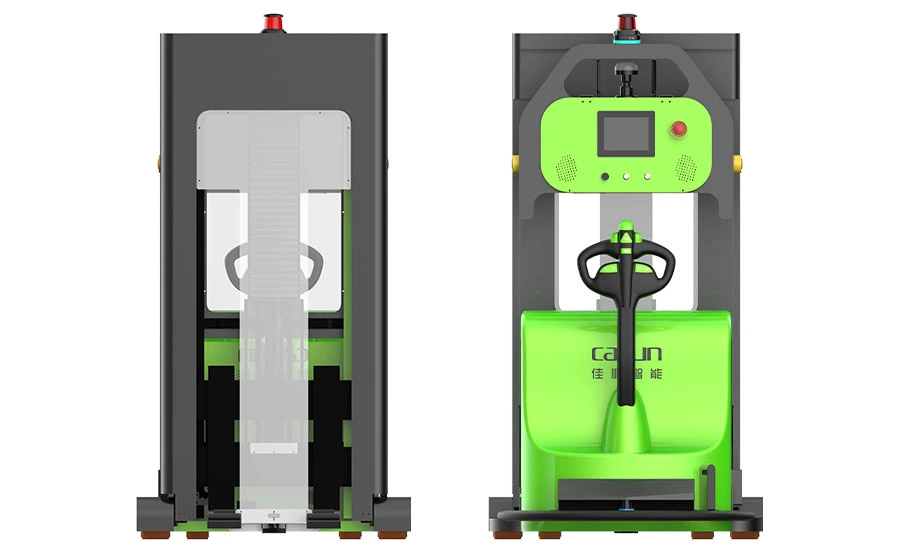

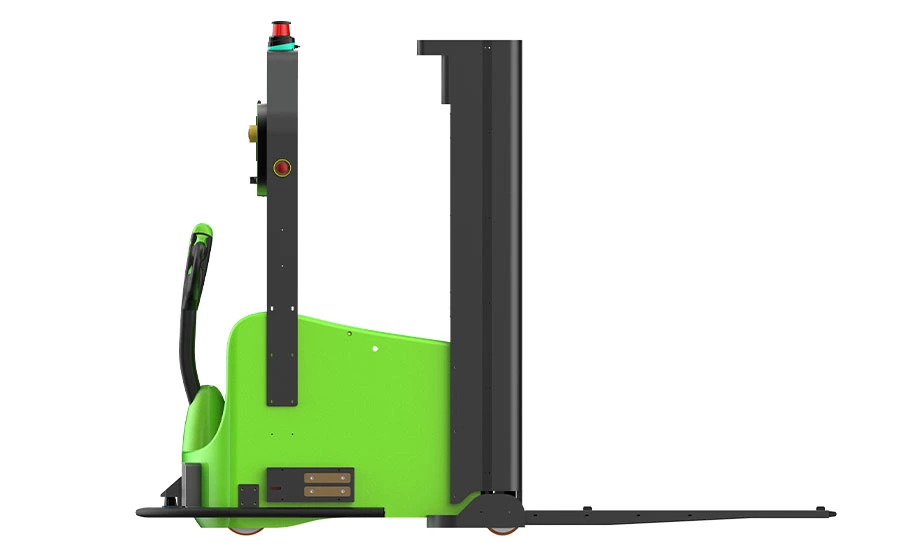

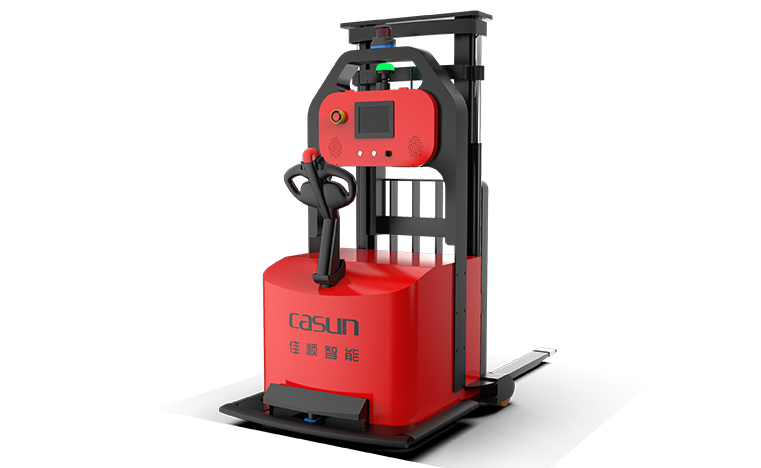

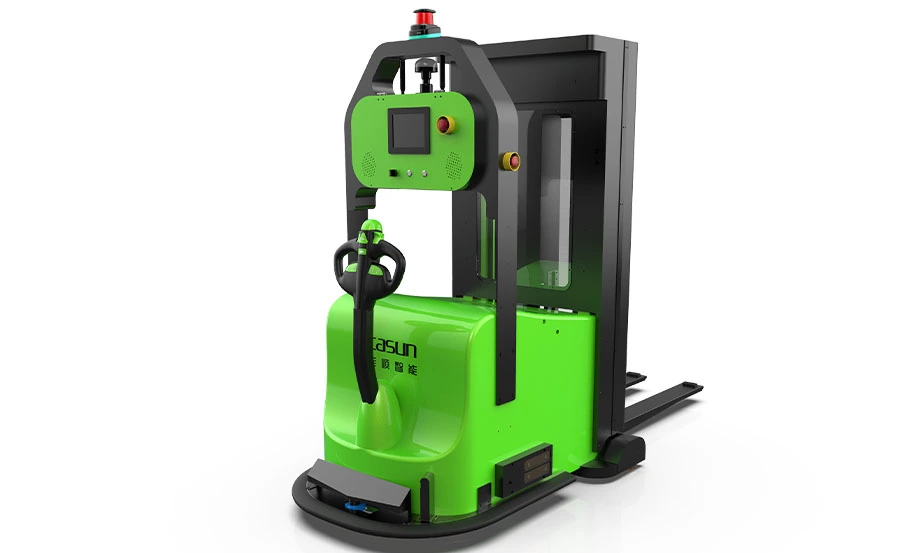

C5-Q1 is balanced and heavy laser navigation forklift AGV, small model, small space during transportation, no external legs, no need to worry about the interference between the machine and the forklift legs when taking and placing materials.
.webp "C5-P1 (6).jpg")
.webp "C5-P1 (5).jpg")
.webp "C5-P1 (2).jpg")
.webp "C5-P1 (3).jpg")
.webp "C5-P1 (1).jpg")
.webp "C5-P1 (4).jpg")
| Forklift type | Counterweight type | Moving direction | Forward, backward, turn left&right |
| Dimension | L2716*W1042*H2011 (mm) | Drive mode | Single steering wheel drive |
| Fork size | 1000*80*40 (mm) | Acceleration | 0.35 m/s² |
| Fork outside distance | 160-733(mm) | Max moving speed | 1.2 m/s |
| Max load capacity | 1000kg | Max climbing capability | ≤3° |
| Truck weight(battery included) | 1900kg | Battery type | Lithium battery |
| Turning radius | 1600mm | Charging mode | Side charging |
| Lifting height | 3000mm | Charging time | ≤1H |
| Pallet type | ●Two-way Entry ●Field pallet | Rated endurance | 6H |
| Pallet size | 1200*1000mm / 1100*1100mm | Safety warning | ●Light warning ●Voice broadcast |
| Navigation mode | Laser positioning navigation | Safe sensing range | ≤3m adjustable |
| Navigation accuracy | ±10mm | Safety protection |
|
| Stop accuracy | ±10mm | Fork protection |
|
| stop angle accuracy | ±1° | Working temperature | -10℃~45℃ |
| Communication Method | WiFi / 5G | Working Environment | No dust, no flammable/explosive/corrosive gases |
AGV has no legs, has a small footprint and can lift up to 2900mm, which is suitable for the operation environment with limited site area.
It can be linked with the ordinary elevator, with two forklifts in and out of the elevator at the same time, so as to greatly improve the operation efficiency.
Similar map across the floor of the scene operation, greatly meet the occasion of different floors of material transfer.
Multiple AGVs synchronize with each other, which applies to complex material handling scenarios.
Independent operation according to scheduling instructions, without manual intervention in the production process.
Have perfect fault self-check function, and have remote fault diagnosis and self-recovery function.
When the power is low, it can go to the charging station for automatic charging. No manual intervention to achieve 24 hours of operation.
The AGVs are equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning to ensure safe operation.
