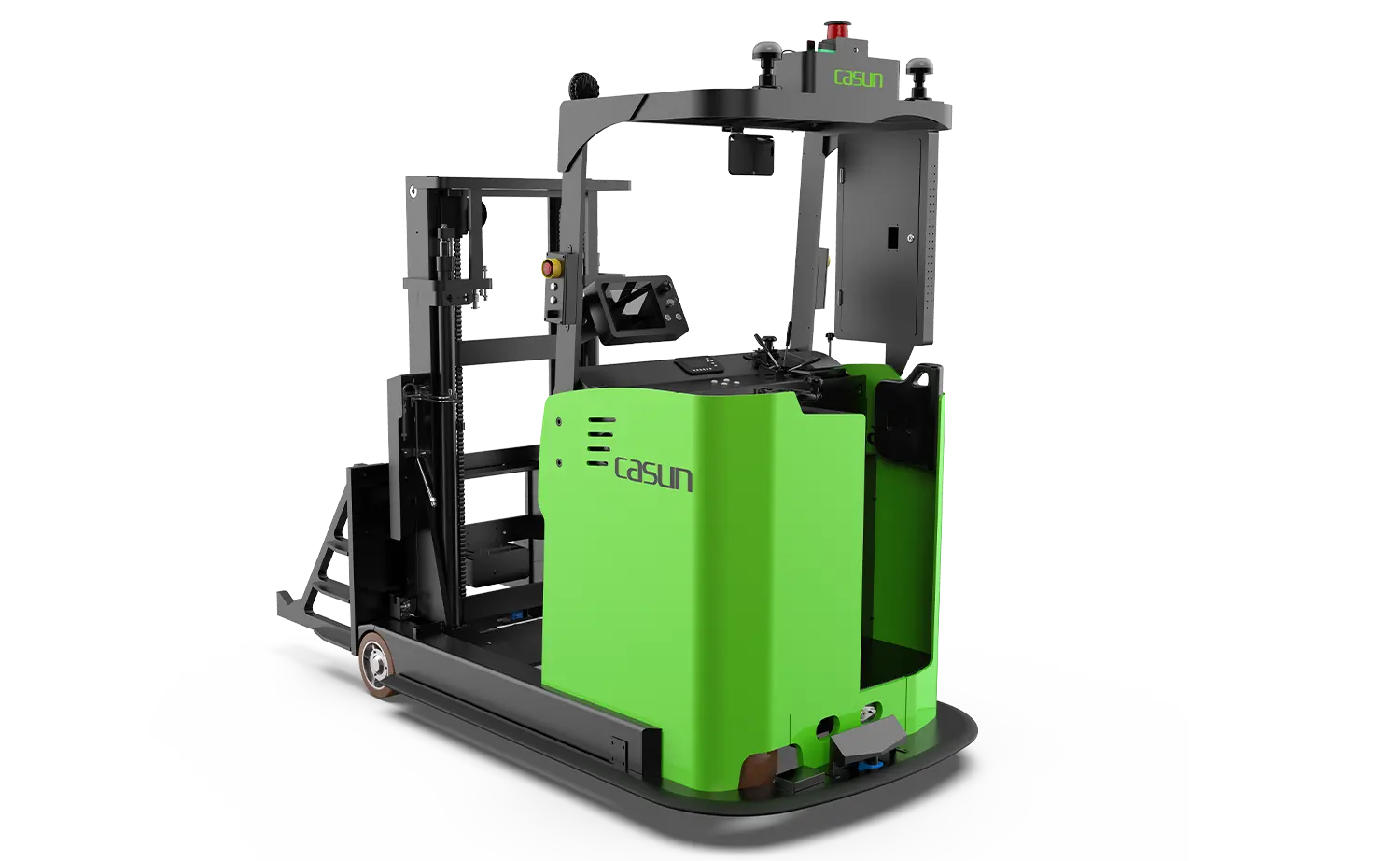

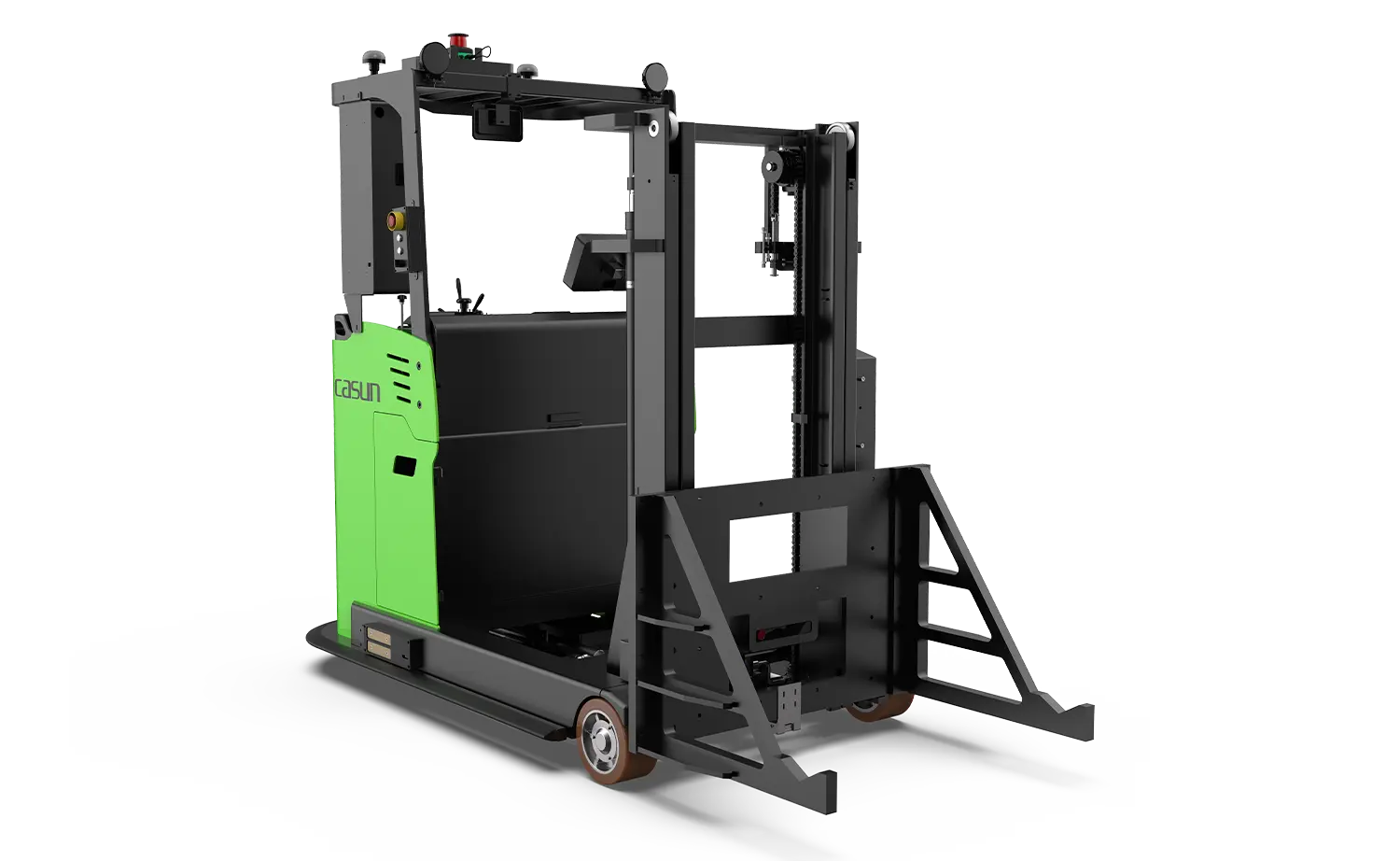

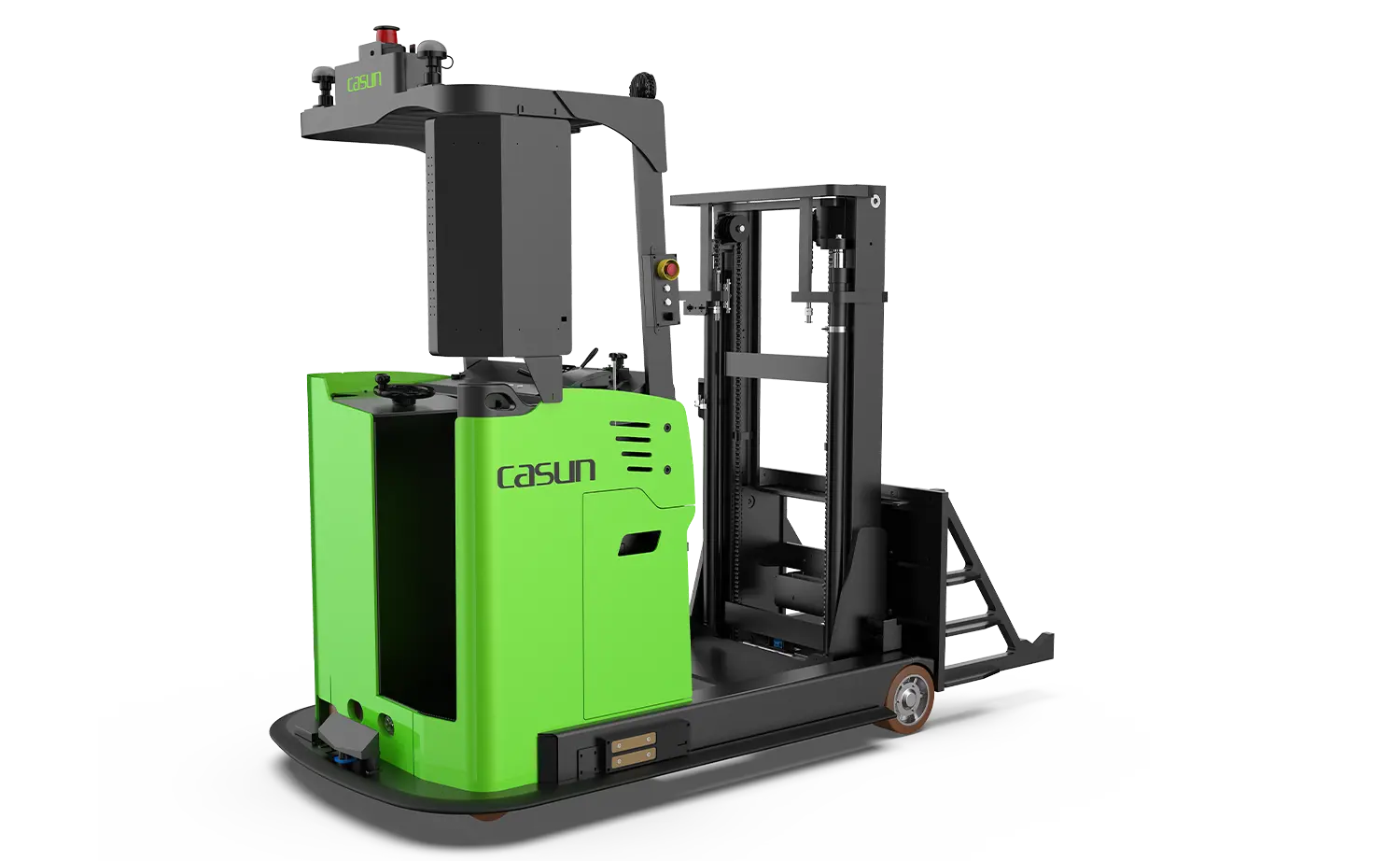

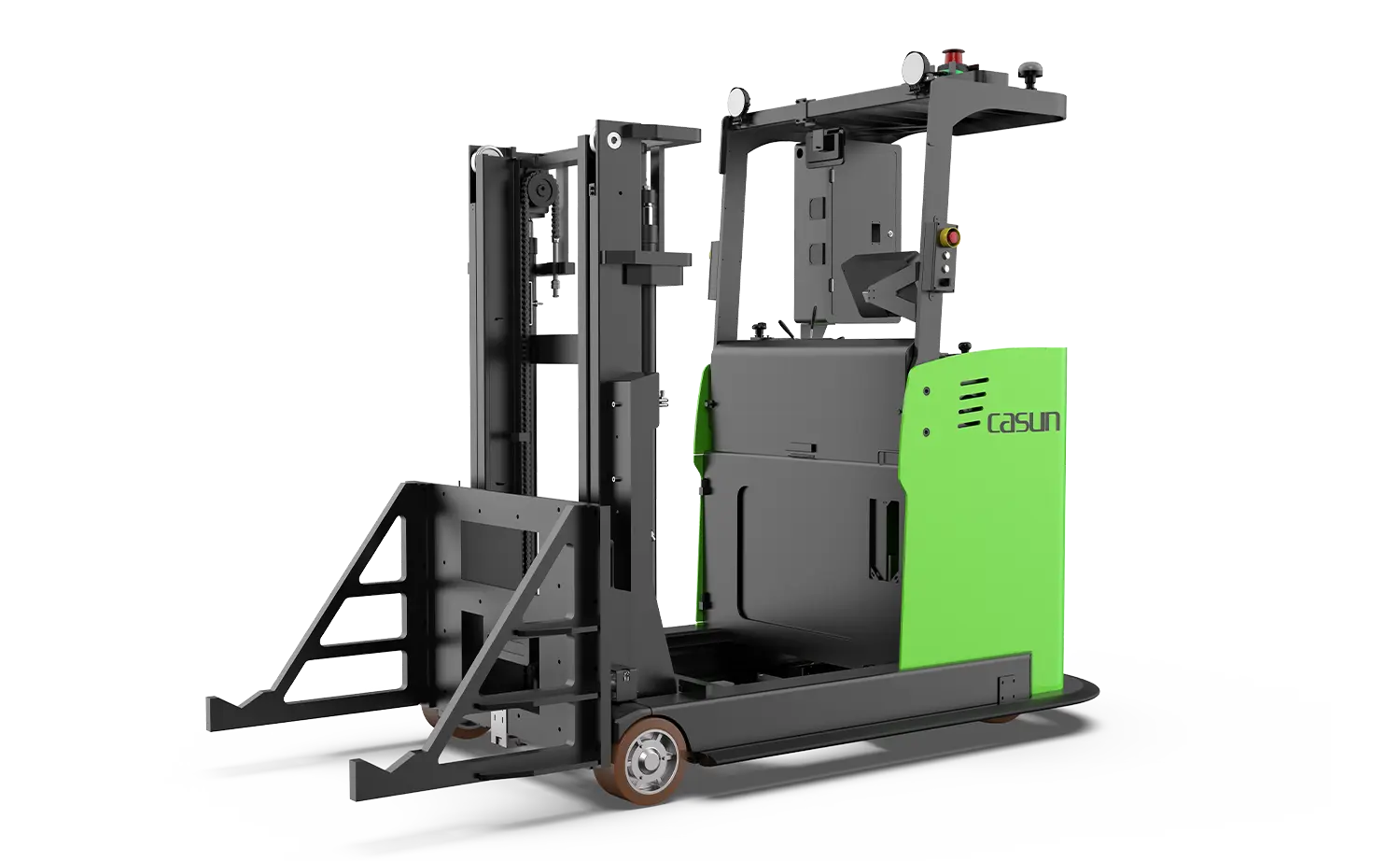

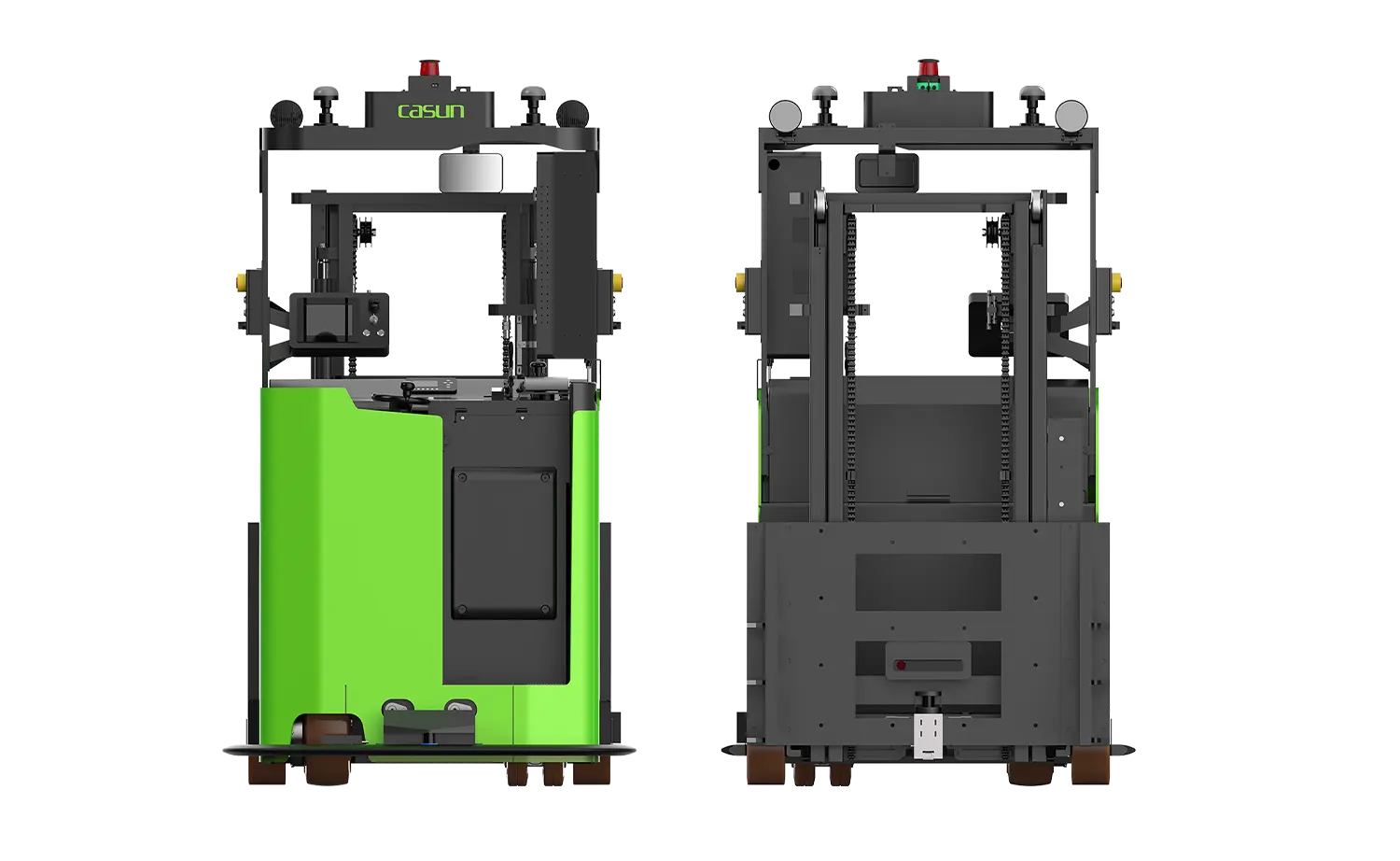

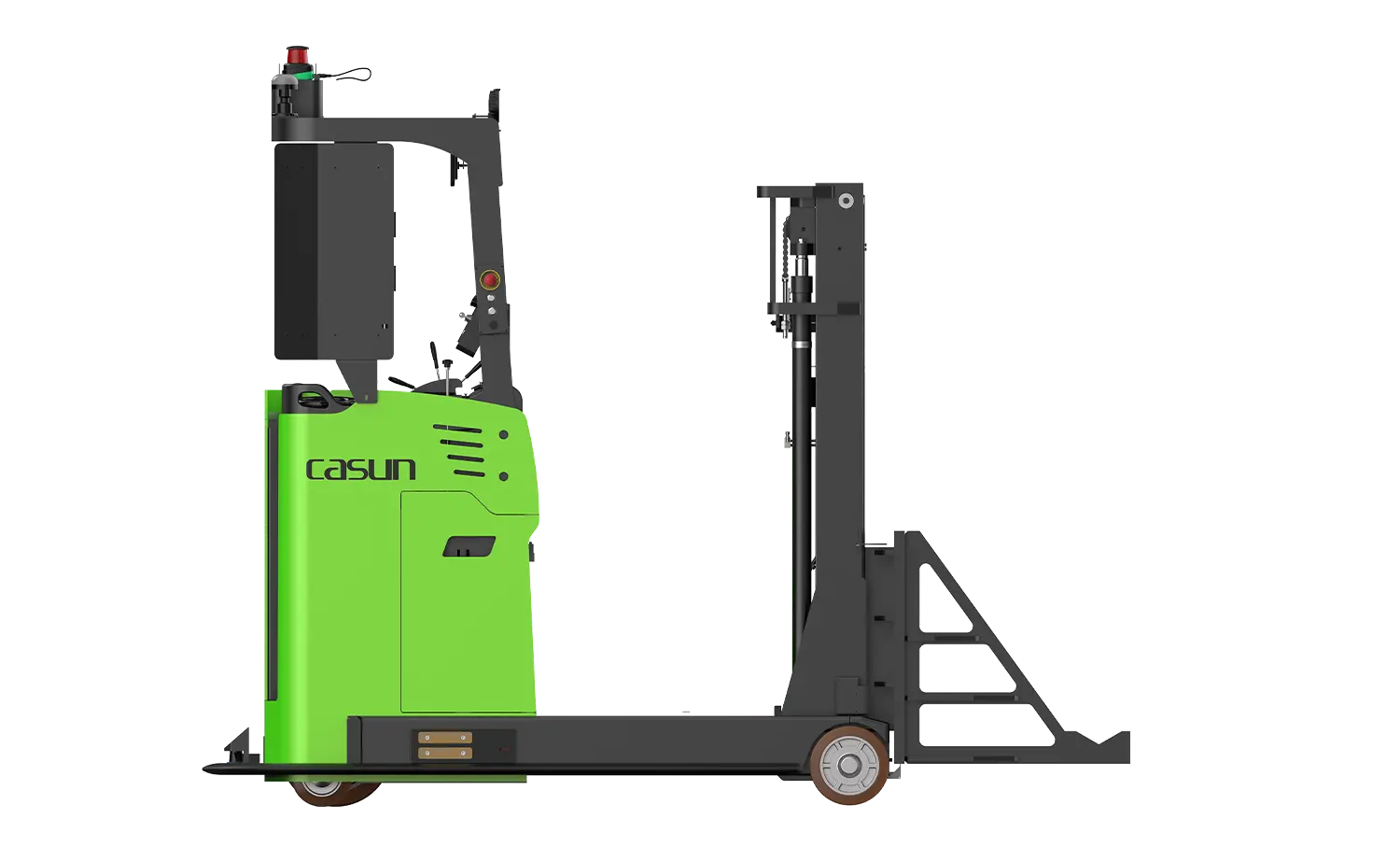

C5-Q5 is a forward lift truck AGV, using laser magnetic navigation, no other positioning facilities on the ground. The AGV can schedule path planning flexibly, and can handle 2000kg of materials. The lifting height can be up to 5000mm, and can be used for high stacking and heavy load scenarios, which can be used for pallet transport.
| Basic parameter | Classification | Forward type |
| Dimension | L2670*W1450*H2365 (mm) | |
| Fork size | 1070*122*40 (mm) | |
| Fork outside distance | 250~772(mm) | |
| Max load capacity | 2000kg | |
| Truck weight (battery included) | 3350kg | |
| Turning raduis | 2200mm | |
| Lifting height | 3000mm | |
| Applicable carrier | Pallet type | Coil stock |
| Pallet size | Coil diameter 100~1200(mm)，Coil length 600~1800(mm) | |
| Navigation performance | Navigate mode | Laser positioning navigation |
| Navigation accuracy | ±10mm | |
| Stop accuracy | ±10mm | |
| Stop accuracy | ±1° | |
| Movenent performance | Travelling direction | Forward, backward, turn left&right |
| Drive mode | Single steering wheel drive | |
| Acceleration | 0.35 m/s² | |
| Max moving speed | 1.2 m/s | |
| Maximum climbing capacity | ≤3° | |
| Battery performance | Battery type | Lithium battery |
| Charging mode | Side charging | |
| Charging time | Charging time after complete discharge ≤1H | |
| Rated endurance | 6H | |
| Network performance | Communciation mode | WiFi / 5G |
| Protective performance | Safety warning | ●Light warning ●Voice broadcast |
| Safe sensing range | ≤3m Adjustable | |

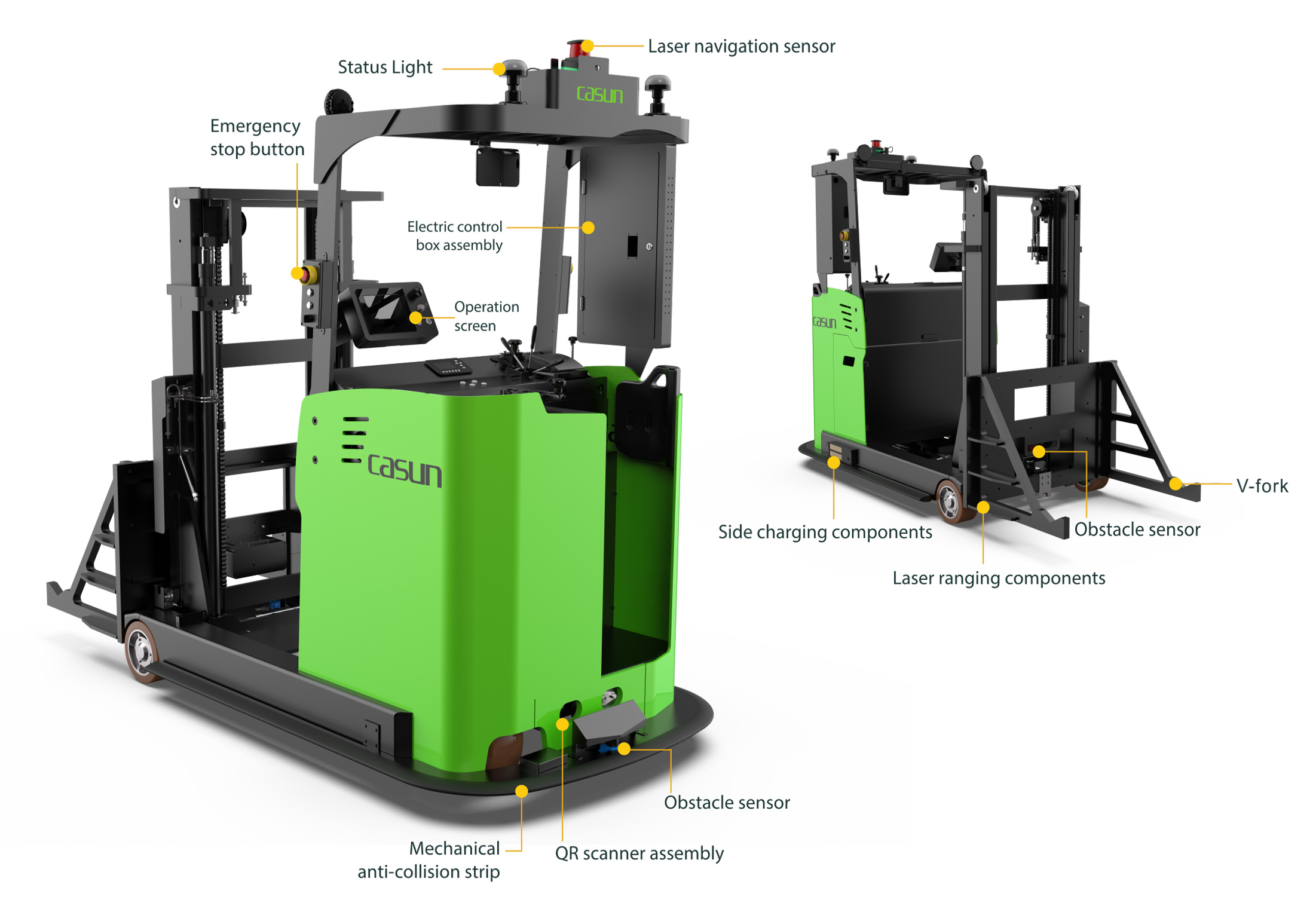

| Safety protection | ● Front and rear obstacle detection sensor ● mechanical anti-collision mechanism ● emergency stop switch | |
| Fork protection | Mechanical collision | |
| Application environment | Operating ambient temperature | -10℃~45℃ |
| Operating environment | No dust, inflammable, explosive and corrosive gases |
The lifting height can be up to 2900mm, with the door frame lifting device, which can take and put materials in a higher position.
Laser navigation, simple and flexible site layout.
It can be linked with the ordinary elevator, with two forklifts in and out of the elevator at the same time, so as to greatly improve the operation efficiency.
Similar map across the floor of the scene operation, greatly meet the occasion of different floors of material transfer.
Multiple AGVs synchronize with each other, which applies to complex material handling scenarios.
Independent operation according to scheduling instructions, without manual intervention in the production process.
Have perfect fault self-check function, and have remote fault diagnosis and self-recovery function.
When the power is low, it can go to the charging station for automatic charging. No manual intervention to achieve 24 hours of operation.
Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning to ensure safe operation.
