C5-B6 carries out precise positioning according to dispatching tasks, and independently completes a series of operations of lifting, transportation, and unloading. The navigation method is SLAM navigation + two-dimensional code assisted positioning, with a load capacity of 500Kg and a lifting stroke of 120mm. Available In new energy lithium batteries, automobiles and parts, flat panel display, food and beverage, 3C and semiconductor industries.
Basicparameter | Classification | Handling |
Dimension | L1120*W600*H788（mm） | |
| Max load capacity | 500kg | |
Truck weight(battery included) | 392kg | |
Turning radiu | 1500m | |
| Lifting height | 120mm | |
Applicable carrier | Pallet type | Small skip car |
| Pallet size | L840*W540*H770（mm） | |
Navigation parameter | Navigation mode | SLAM navigation |
| Navigation accuracy | ±10mm | |
| Stop accuracy | ±10mm | |
| Stop Angle Accuracy | ±1° | |
Movement parameter | Moving direction | Forward , backward , rotate |
| Drive mode | Two-wheel differential drive | |
| Acceleration | 0.5m//s² | |
| Max travelling speed | 1.0m/s | |
| Max climbing capability | ≤3° | |
Battery parameter | Battery type | Lithium battery |
| Charging mode | Side charging | |
| Charging time | Charging time after full discharging≤1H | |
| Rated endurance | 8H | |
| Network parameter | Communication Method | WiFi / 5G |
| Protective parameter | Safety warning | ●Light warning ●Voice broadcast |
| Safe sensing range | ≤3m adjustable | |
| Safety protection | ●Front and rear obstacle detection sensor ●Mechanical anti-collision design ●Emergency stop switch | |
| Fork protection | Mechanical collision + Photoelectric sensors | |
| Application environment | Working temperature | -10℃ ~ 45℃ |
| Working Environment | No dust, no flammable/explosive/corrosive gases |

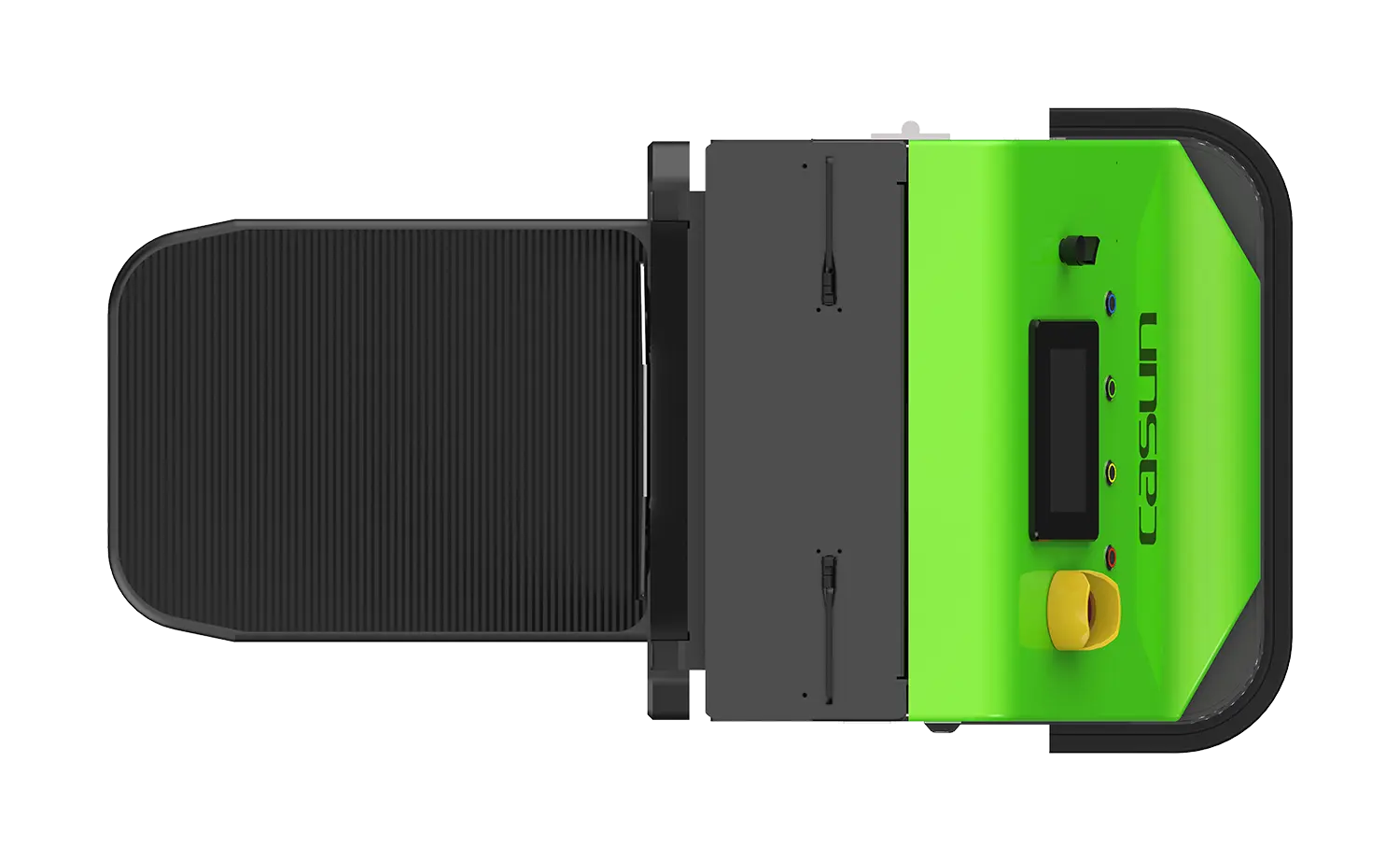

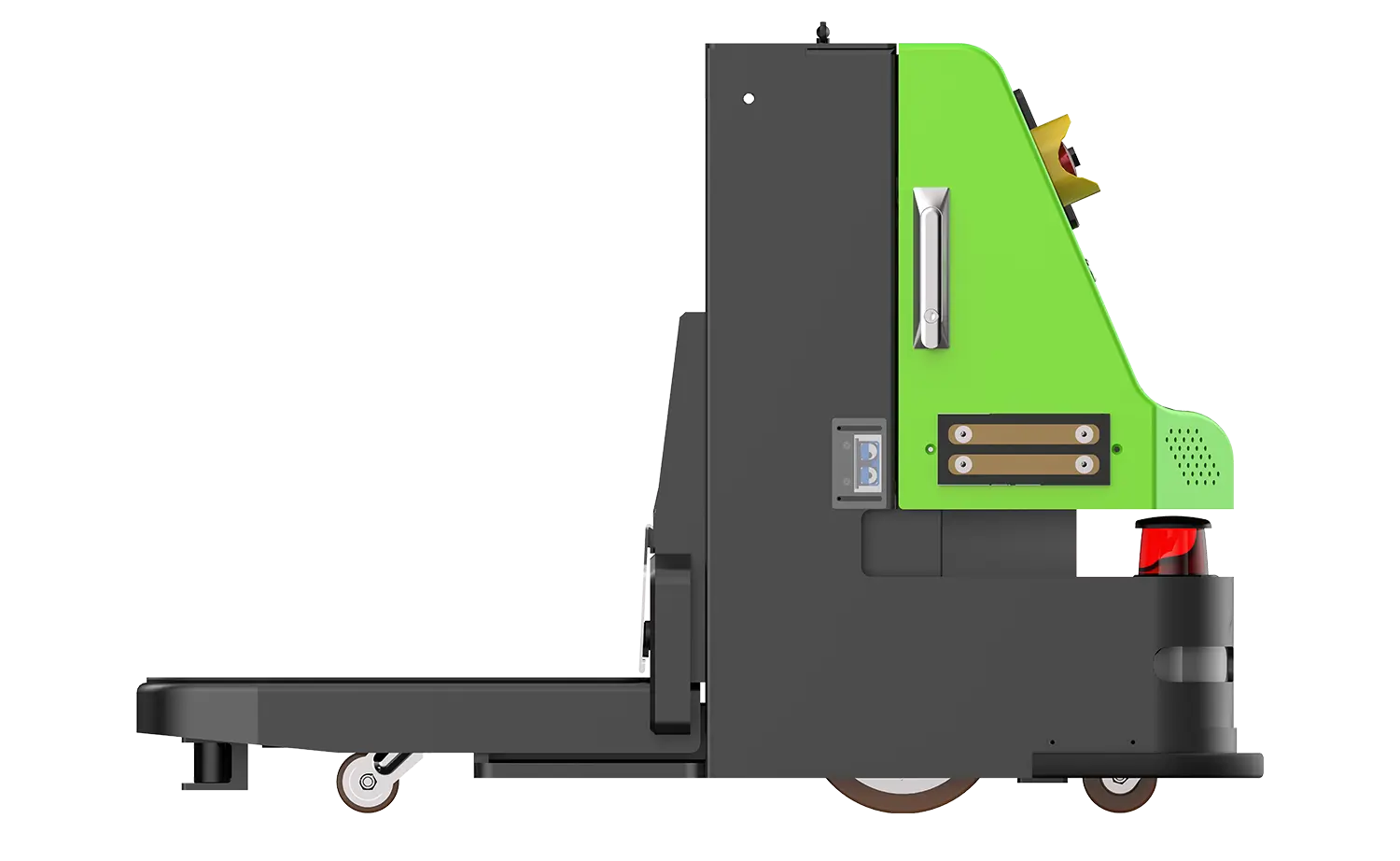

The appearance is compact and can be applied in scenarios with small logistics channels。The car body is flexible and can rotate 360°。
Compared with ordinary forklift truck, the storage capacity of the AGV pallet mover can be increased by 20% when placing goods in parallel.
It can be linked with the ordinary elevator, with two forklifts in and out of the elevator at the same time, so as to greatly improve the operation efficiency.
It can be used to the similar map across the floor of the scene operation, greatly meet the occasion of different floors of material transfer.
Unique dual wheel differential drive, fast speed (0-60 meters only needs 3 seconds), and with fast rotation function (in situ rotation only 4 seconds)
The AGV can be quickly put into use without on-site transformation of the application.
Independent operation according to scheduling instructions, without manual intervention in the production process.
Have perfect fault self-check function, and have remote fault diagnosis and self-recovery function.
When the power is low, it can go to the charging station for automatic charging. No manual intervention to achieve 24 hours of operation.

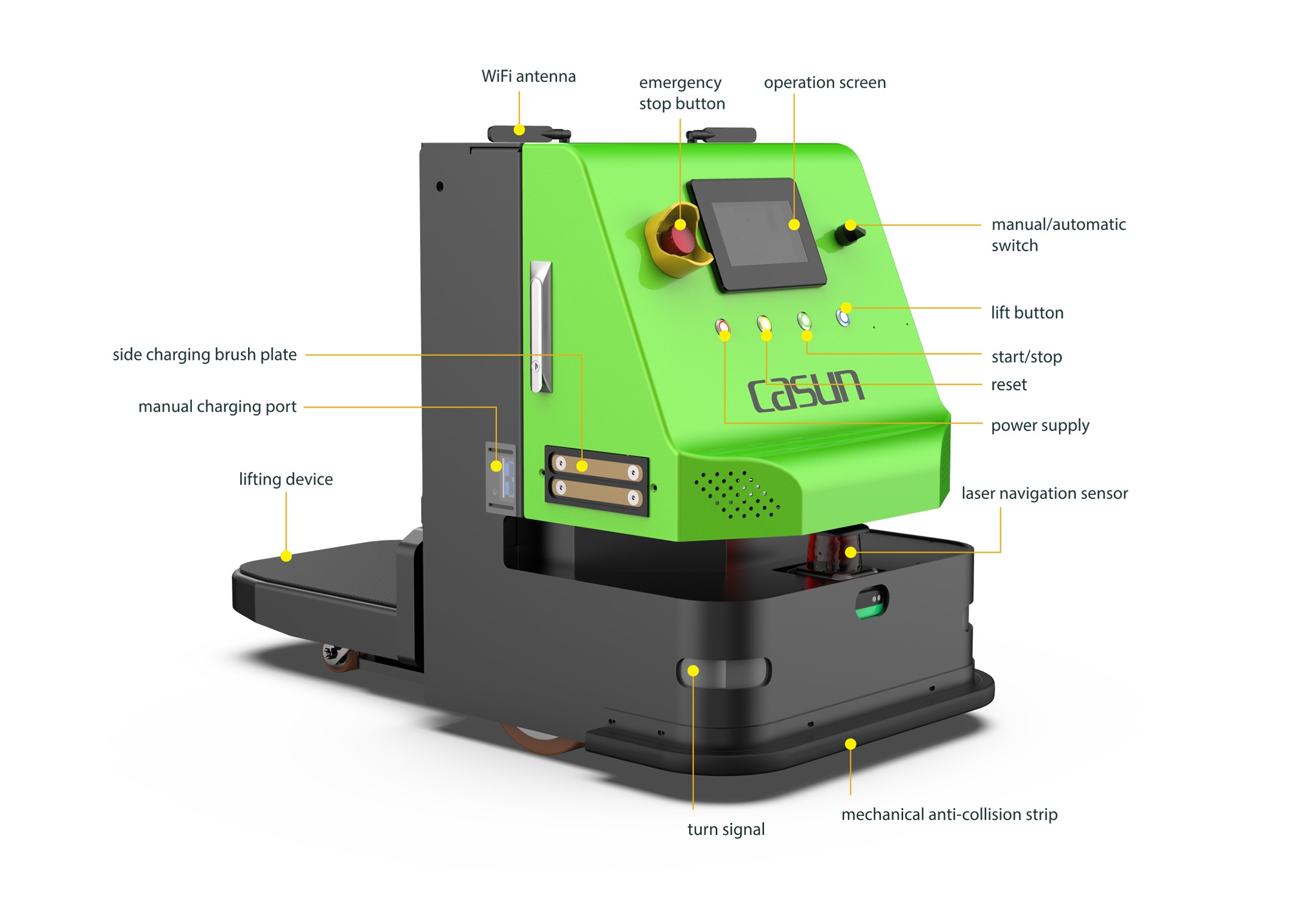

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning to ensure safe operation.
