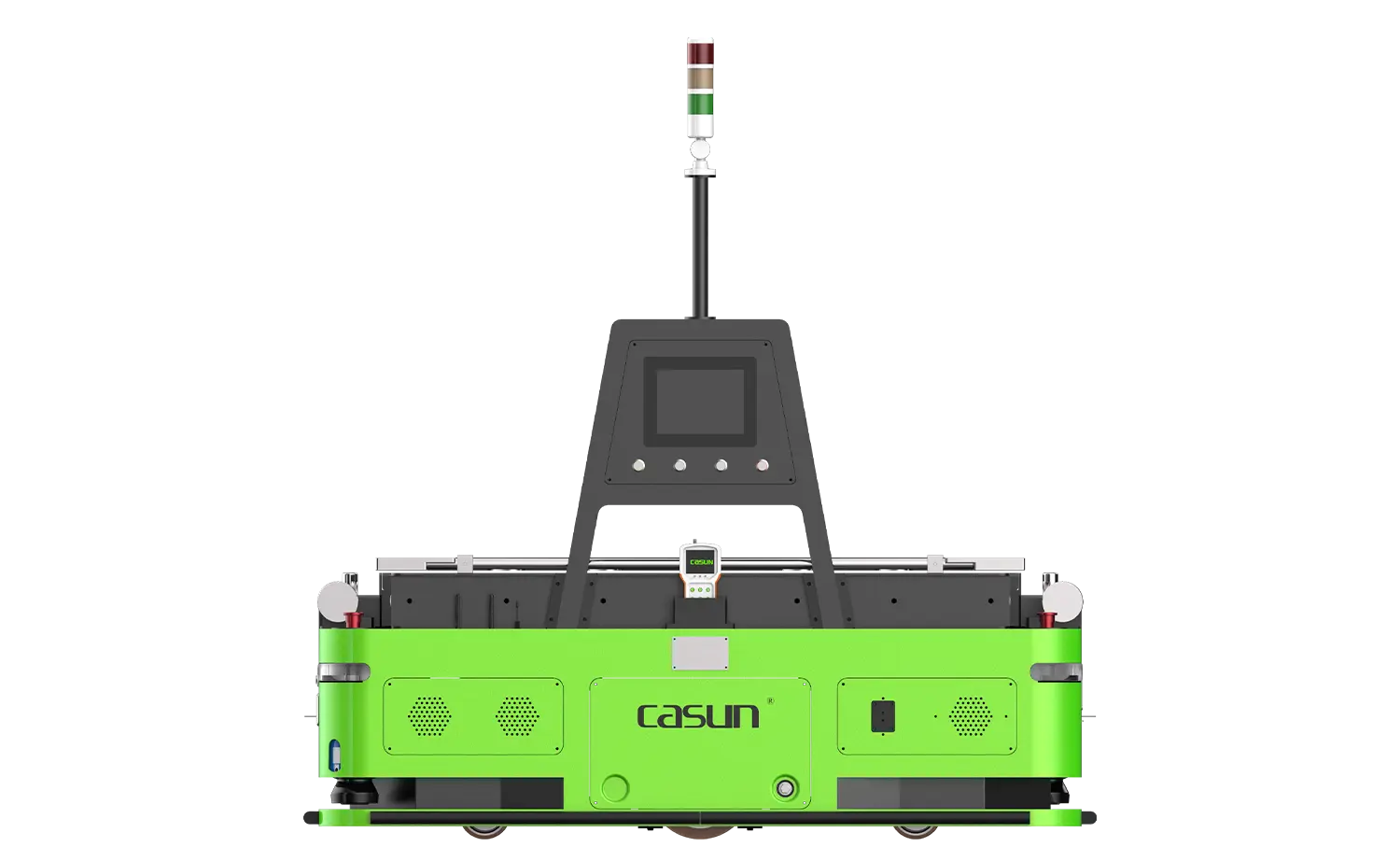

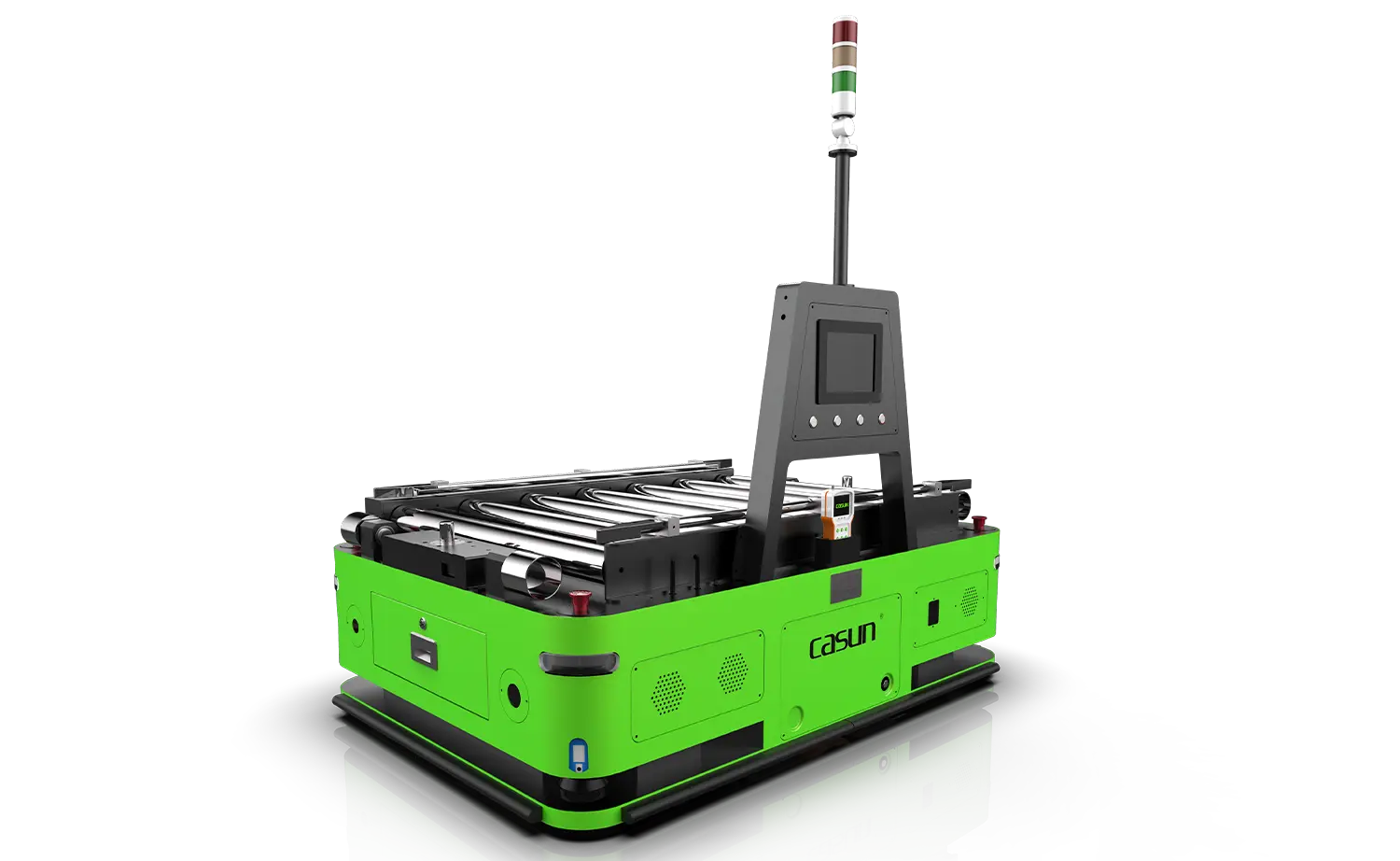

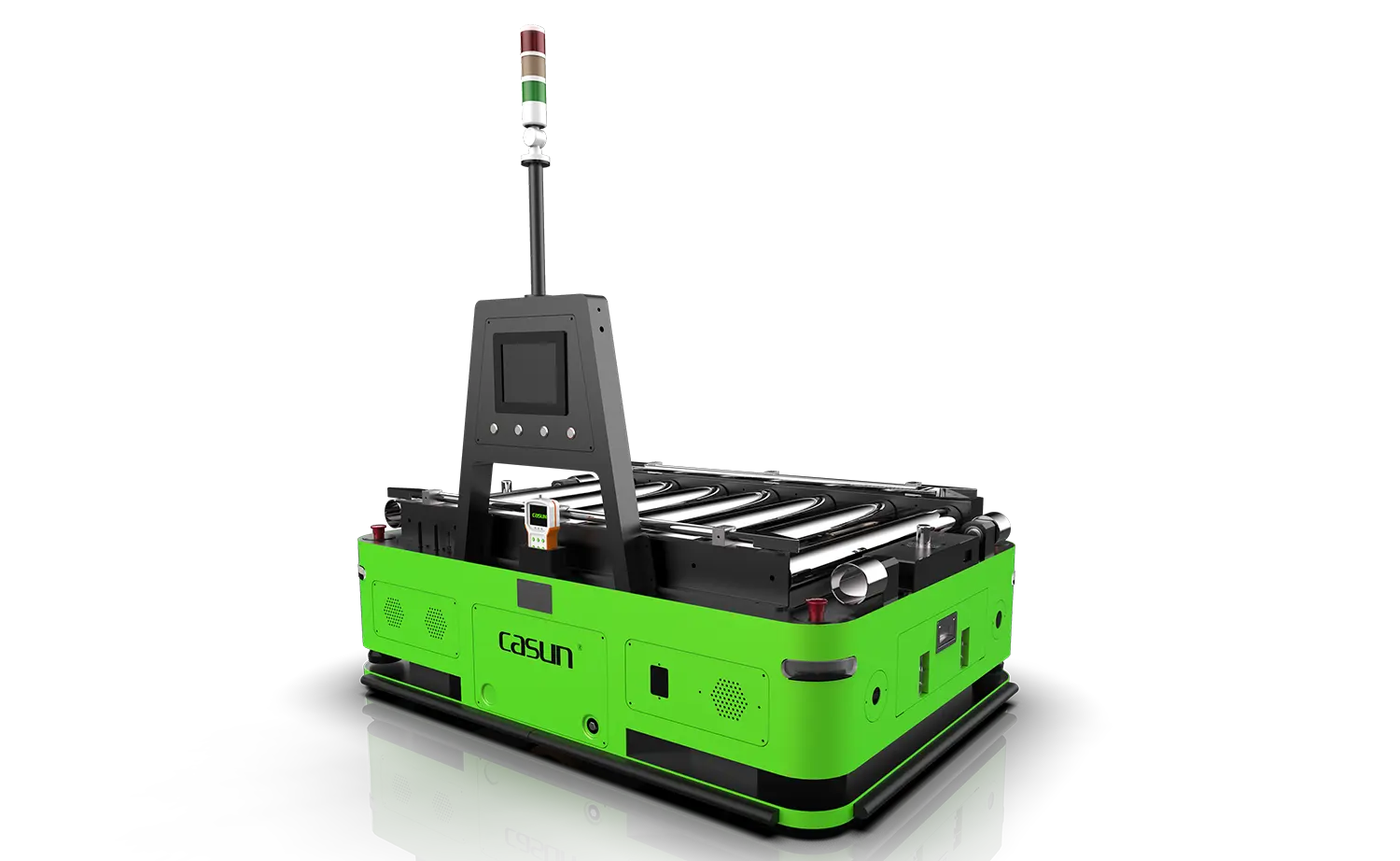

C3-11 single conveyor deck load AGV Trolley is a trackless navigation AGV, which uses shoulder-mounted roller to connect production line or transport connection platform, and has the function of in-situ rotation. Two-dimensional code navigation, laser navigation or SLAM navigation can be adopted according to different scenarios.
| Basic performance | Dimension | L1540*W1100*H1555 (mm) |
| Max load capacity | 1000kg | |
| Vehicle weight | 400kg | |
| Rotation Diameter | 1780mm | |
| Docking height | 500mm | |
| Support material quantity | 1200*800(mm) | |
| Docking direction | Anterior-posterior | |

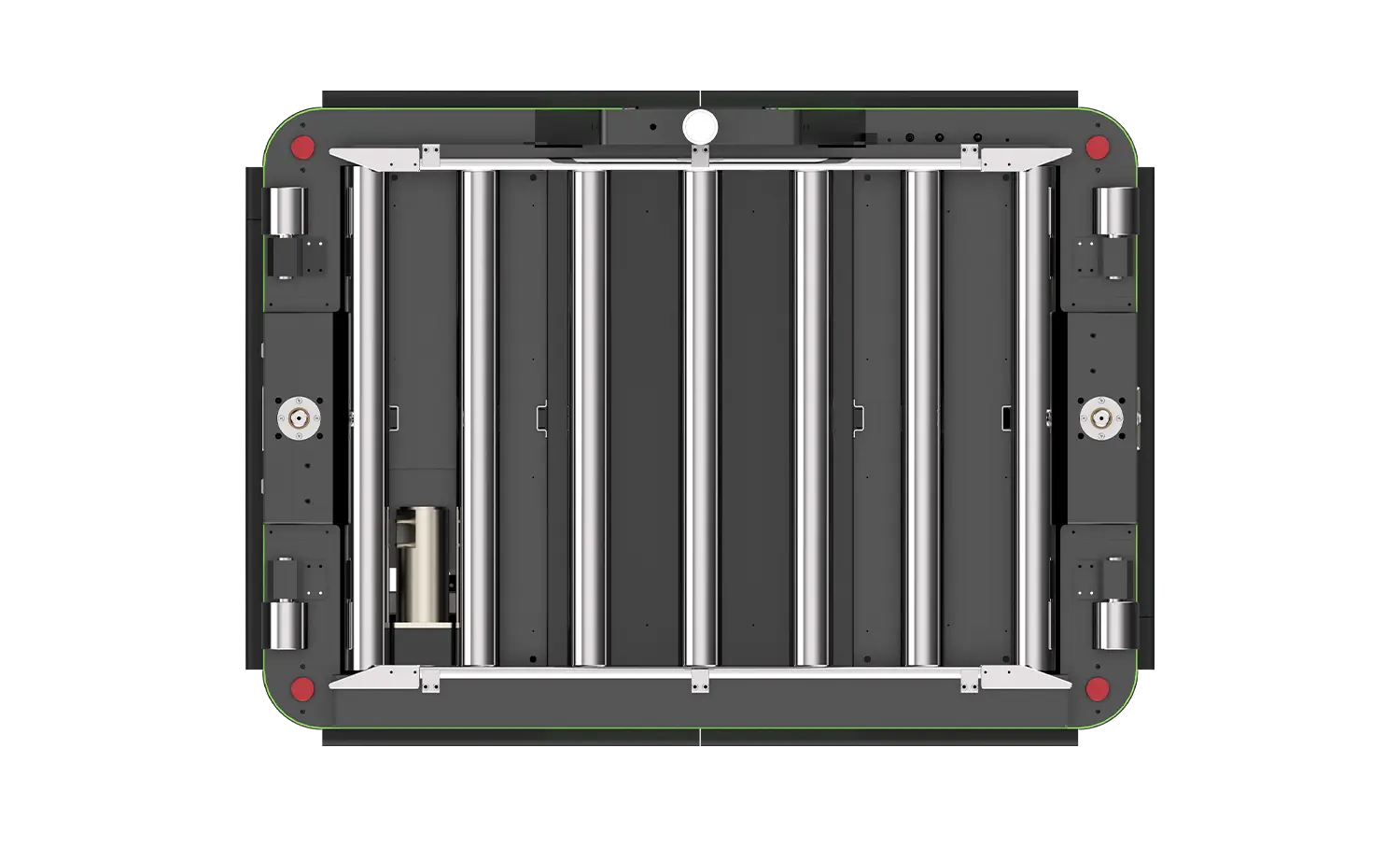

| Material transfer mode | Roller | |
| Navigation performance | Navigate mode | QR code navigation / Laser positioning navigation / SLAM navigation |
| Navigation accuracy | ±10mm / ±10mm / ±15mm | |
| Stop accuracy | ±5mm / ±10mm / ±10mm | |
| Stop Angle accuracy | ±1° | |
| Movenent performance | Traveling direction | Forward, backward, rotating |
| Drive mode | Two-wheel differential drive | |
| Acceleration | 0.3m/s² | |
| Max travelling speed | 1.2m/s / 1.0m/s | |
| Maximum climbing capacity | ≤3° | |
| Battery performance | Battery mode | Lithium battery |
| Charging mode | Side charging | |
| Charging time | Charge time after full discharge≤1H | |
| Rated endurance | 8H | |
| Network performance | Communciation mode | WiFi / 5G |
| Protective performance | Safety warning | ●Light warning ●Voice broadcast |
| Safe sensing range | ≤3m Adjustable | |
| Safety protection | ● Front and rear obstacle detection sensor ● Mechanical anti-collision mechanism ● Emergency stop switch | |
| Application environment | Operating ambient temperature | -10℃ ~ 45℃ |
| Operating environment | No dust, inflammable, explosive and corrosive gases |
It has 90 degree turn and 180 degree turn function.
Both sides of the AGV can be connected to the wiring side equipment for more flexible transportation.
It can be linked with ordinary elevator, with cross-floor operation function.
Multiple AGVs synchronize with each other, which applies to complex material handling scenarios.
Have perfect fault self-check function, and have remote fault diagnosis and self-recovery function.
When the power is low, it can go to the charging station for automatic charging. And it can achieve 24 hours of operation without manual intervention

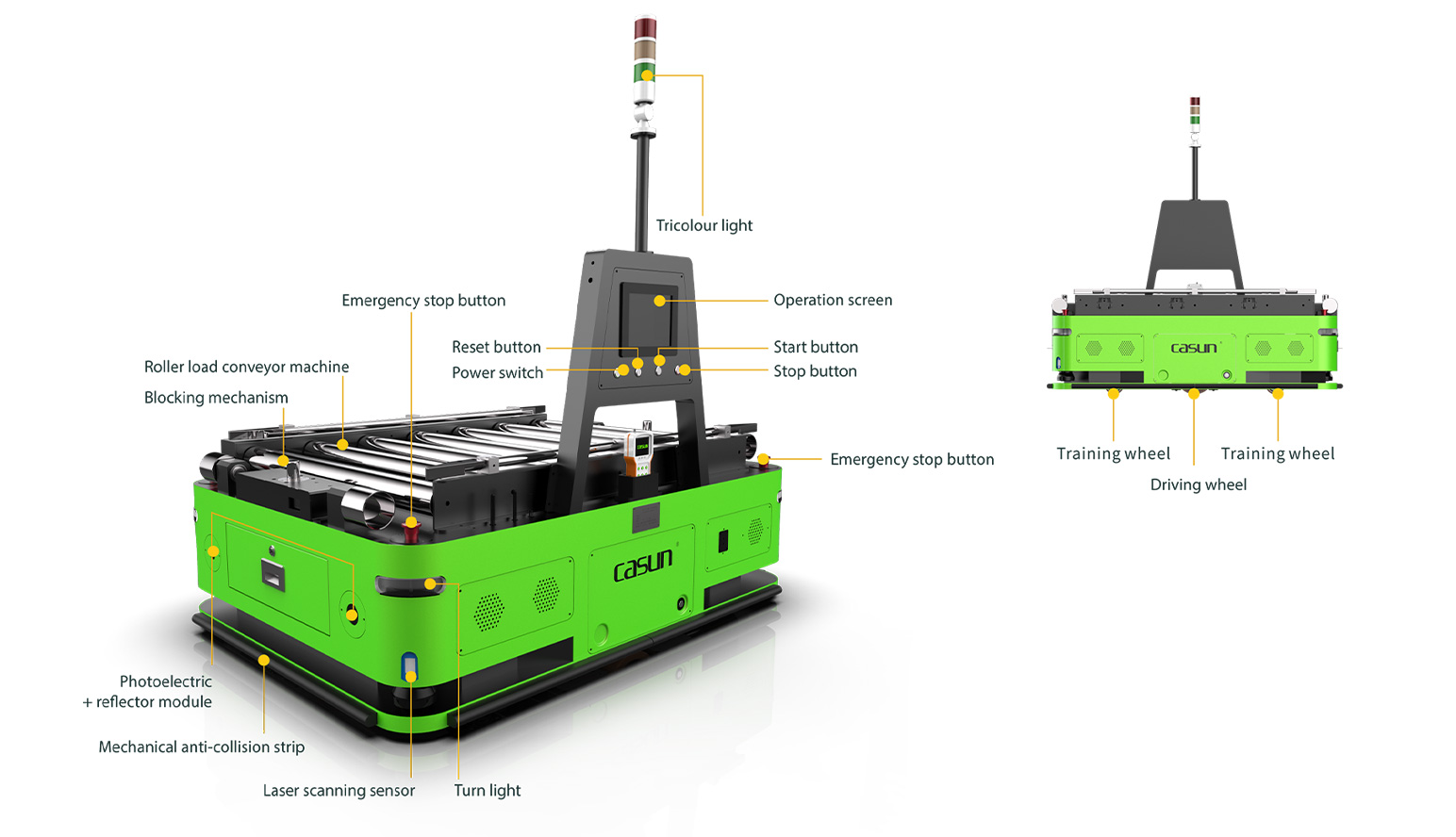

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning to ensure safe operation.
