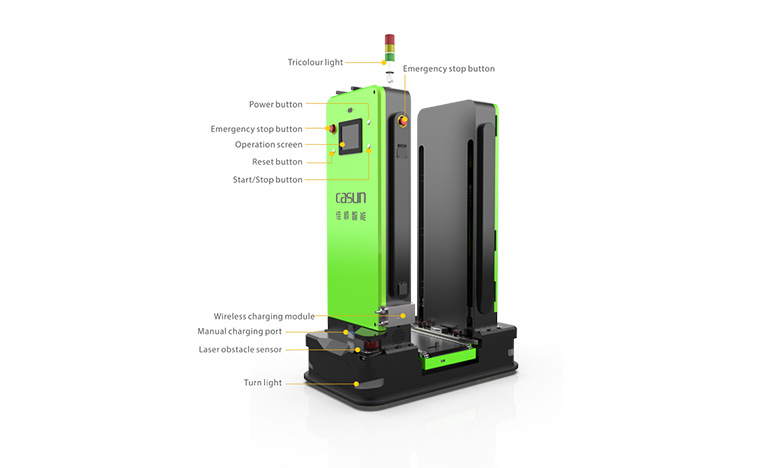

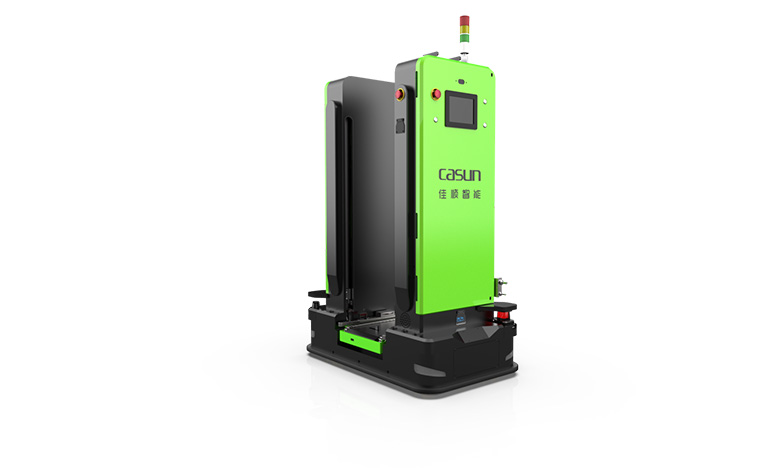

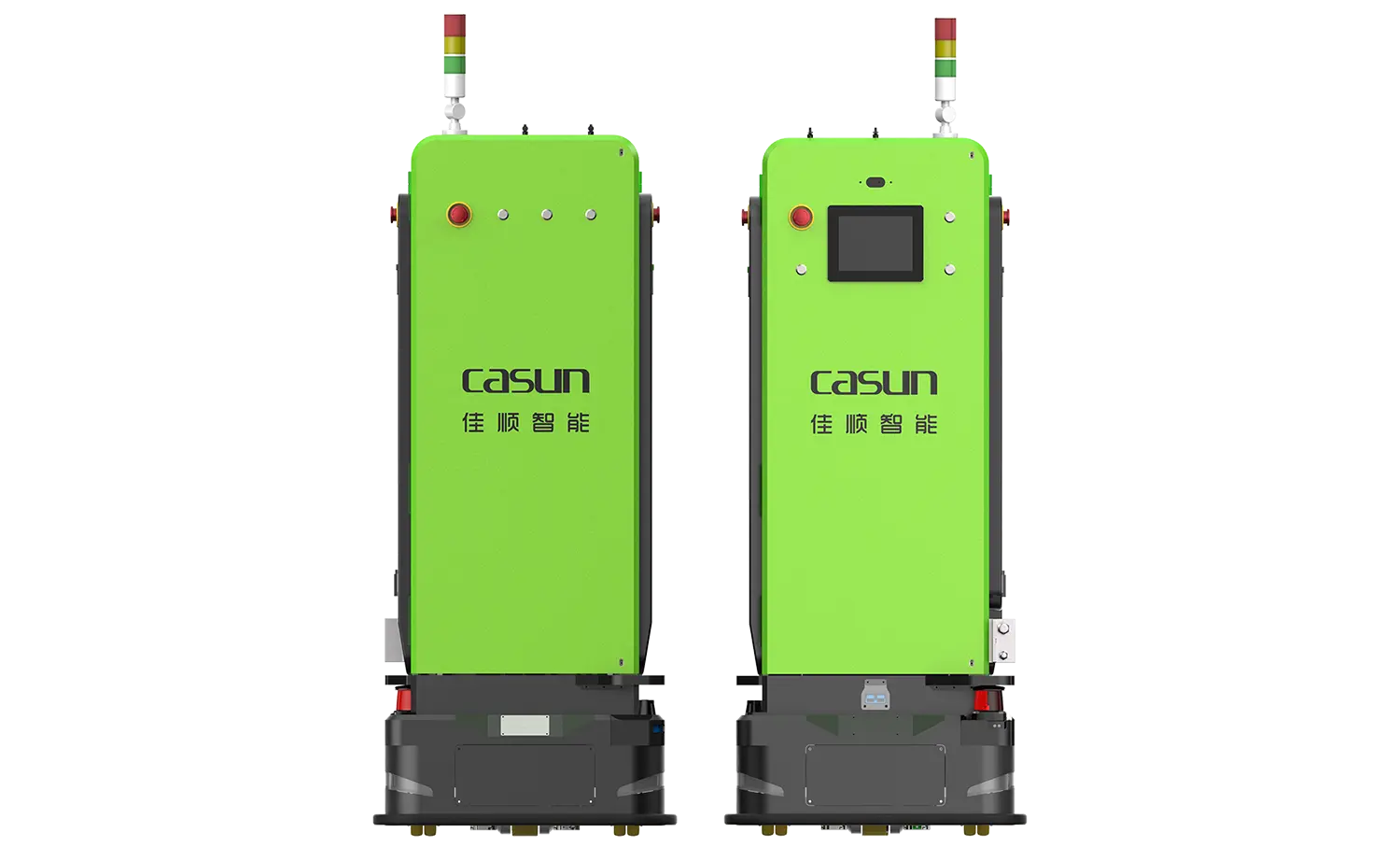

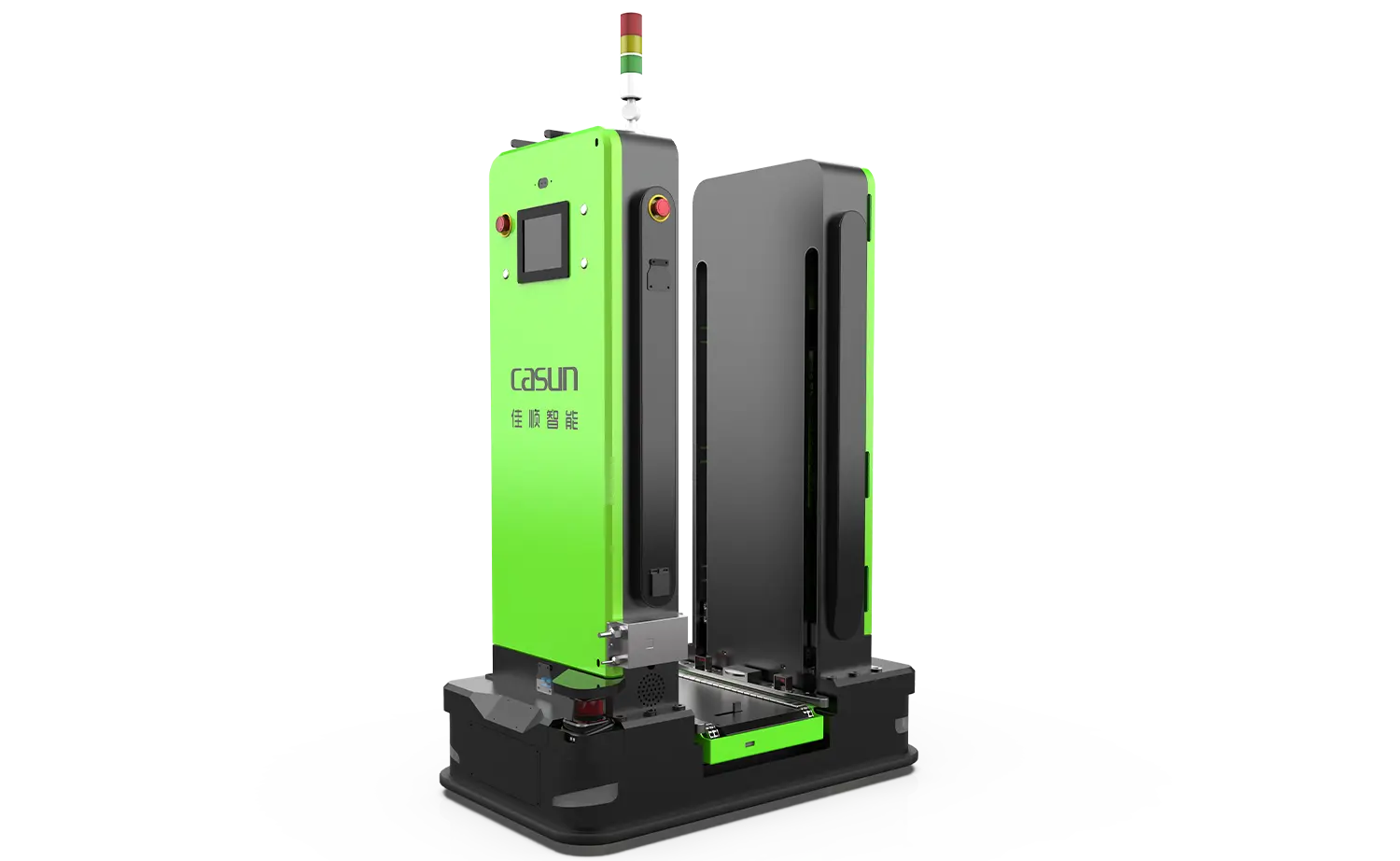

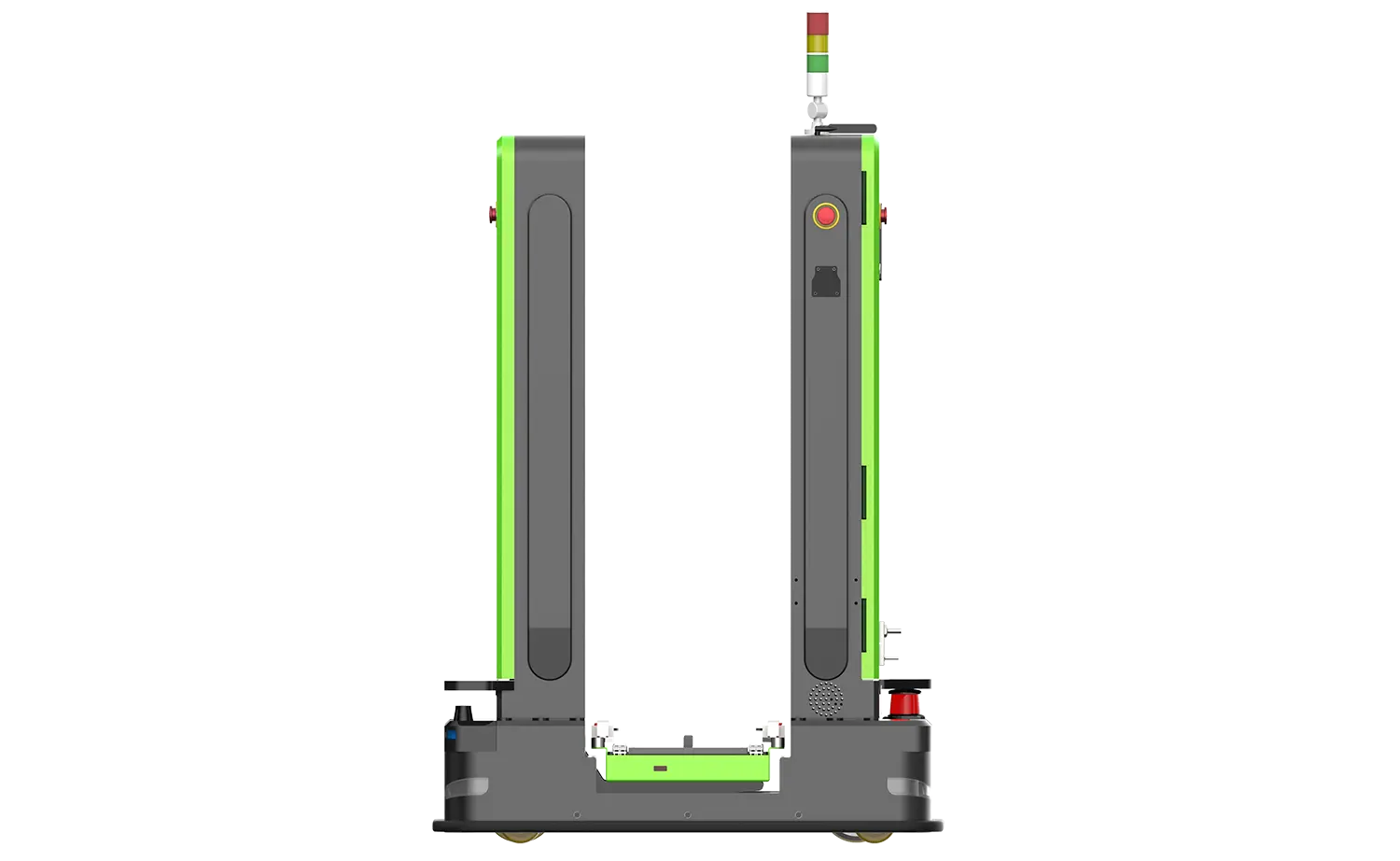

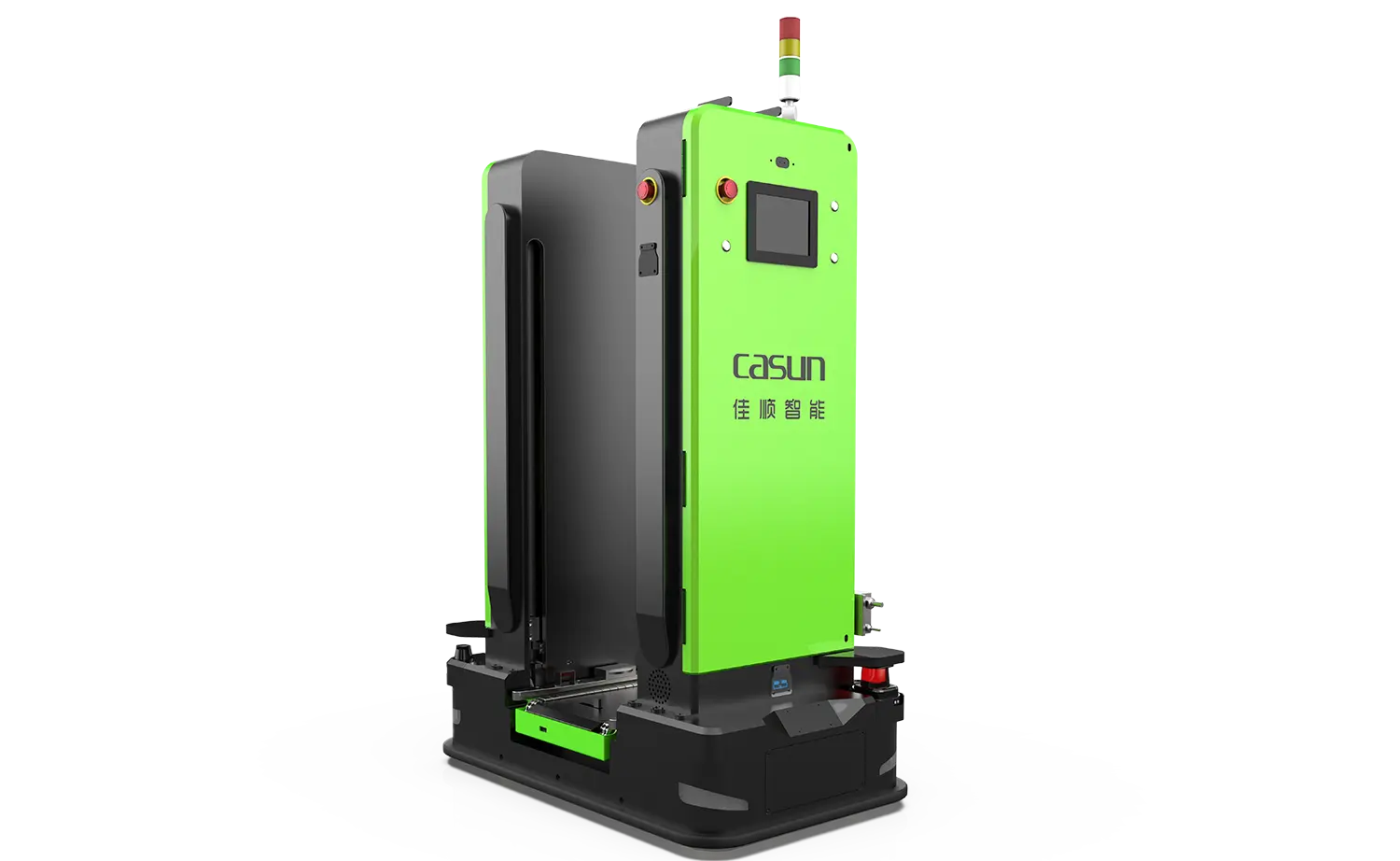

C3-03 is a customized AGV for SMT production line, which can use QR code navigation and SLAM navigation technology, with a load capacity of 300KG. It is suitable for the automatic transfer of different heights of PCBA board materials in transport baskets, with flexible operation and stable driving.
Working method: After the AGV receives the system command, the AGV lurks to the bottom of the material rack, lifts the material rack, and carries out material transportation;
| Basic parameters | Dimension | L1154*W694*H1490 (mm) |
| Max load capacity | 300kg | |
| Vehicle weight | 500kg | |
| Rotation Diameter | 1280mm | |
| Docking height | 290~1250 (mm) | |
| Material supporting size | 300*350 (mm) | |
| Docking direction | Left-right direction | |
| Material transfer mode | Belt | |
| Navigation performance | Navigate mode | QR code navigation / Laser positioning navigation / SLAM navigation |
| Navigation accuracy | ±10mm / ±10mm / ±15mm | |
| Stop accuracy | ±5mm / ±10mm / ±10mm | |
| Stop angle accuracy | ±1° | |
| Movenent performance | Traveling direction | Forward, backward, sideway, rotation |
| Drive mode | Steering wheel drive | |
| Acceleration | 0.35m/s² | |
| Max travelling speed | 1.0m/s | |
| Maximum climbing capacity | ≤3° | |
| Battery performance | Battery mode | Lithium battery |
| Charging mode | Side charging / Wireless charging | |
| Charging time | Charging time after complete discharge: Side charging ≤1H / Wireless charging ≤2H | |
| Rated endurance | 8H | |
| Network performance | Communciation mode | WiFi / 5G |
| Protective performance | Safety warning | ●Light warning ●Voice broadcast |
| Safe sensing range | ≤3m Adjustable | |
| Safety protection | ● Front and rear diagonal obstacle detection sensors ● Mechanical anti-collision mechanism ● emergency stop switch | |
| Application environment | Operating ambient temperature | -10℃ ~ 45℃ |
| Operating environment | No dust, inflammable, explosive and corrosive gases |
The lifting AGV can interact with the elevator to complete the operation of automatically going up and down floors.
The carrying capacity can reach 1500KG, and the full-load moving speed can reach 72m/min.
The map is self-learning, and the operation map is automatically updated according to the on-site environment when working, which greatly improves the environmental adaptability.
The primary positioning accuracy can reach ±10mm, and the secondary positioning accuracy can reach ±5mm
Equipped with a full servo drive, it can increase the speed quickly (0-72 meters per minute only takes 3 seconds), and has a fast rotation function (only 3 seconds for in-situ rotation)
Synchronous linkage of multiple AGVs is suitable for complex material handling scenarios.
No manual intervention is required in the production process, and the scheduling system is fully automatic.
With fault self-checking function, remote fault diagnosis and self-recovery function.
When the AGV detects a low battery state, it will automatically move to the charging station for charging. The online time can reach 24 hours a day to improve productivity.
Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound and light warning to ensure safe operation.
