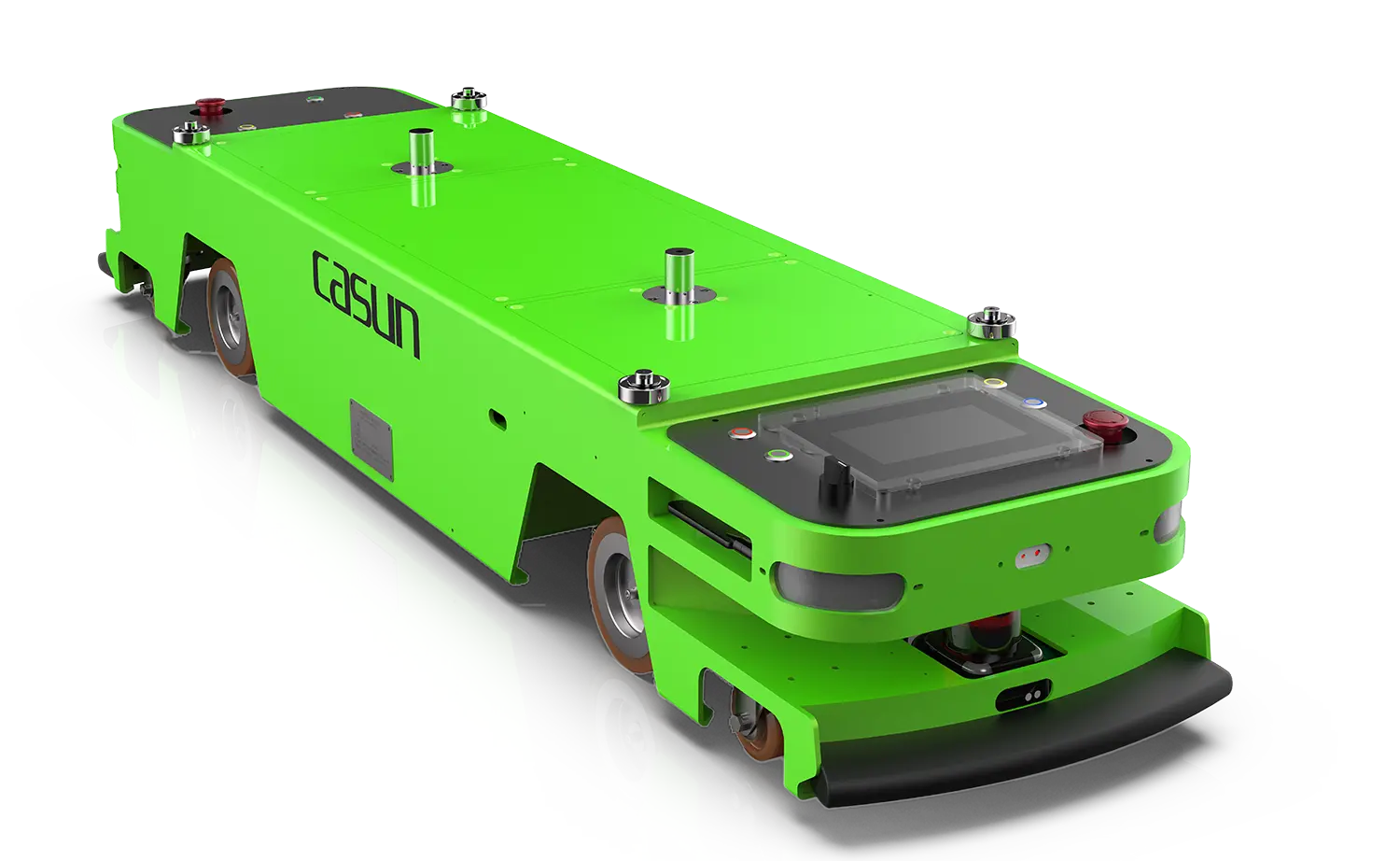

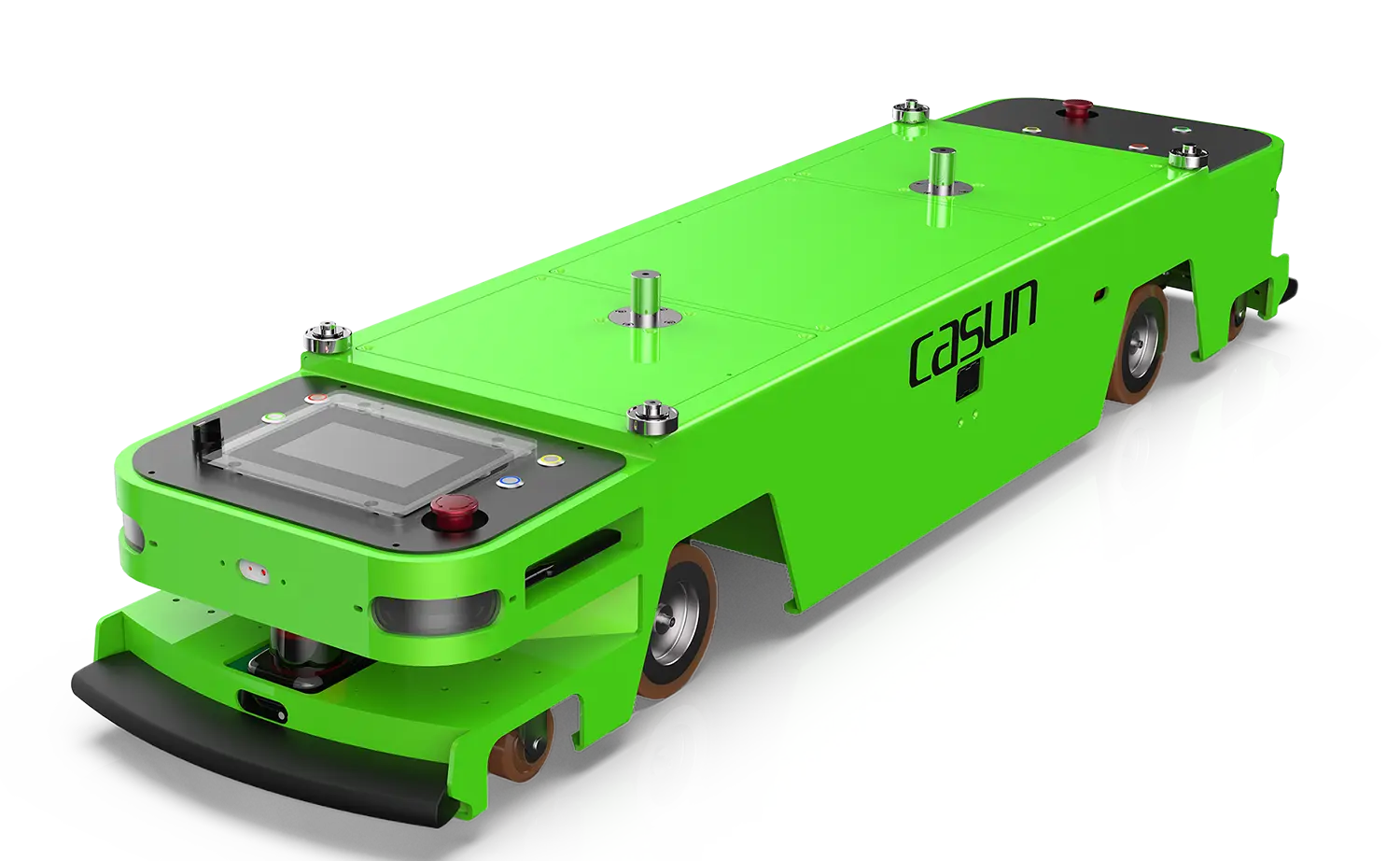

C1-24 bidirectional latent traction AGV adopts SLAM navigation or QR code navigation.

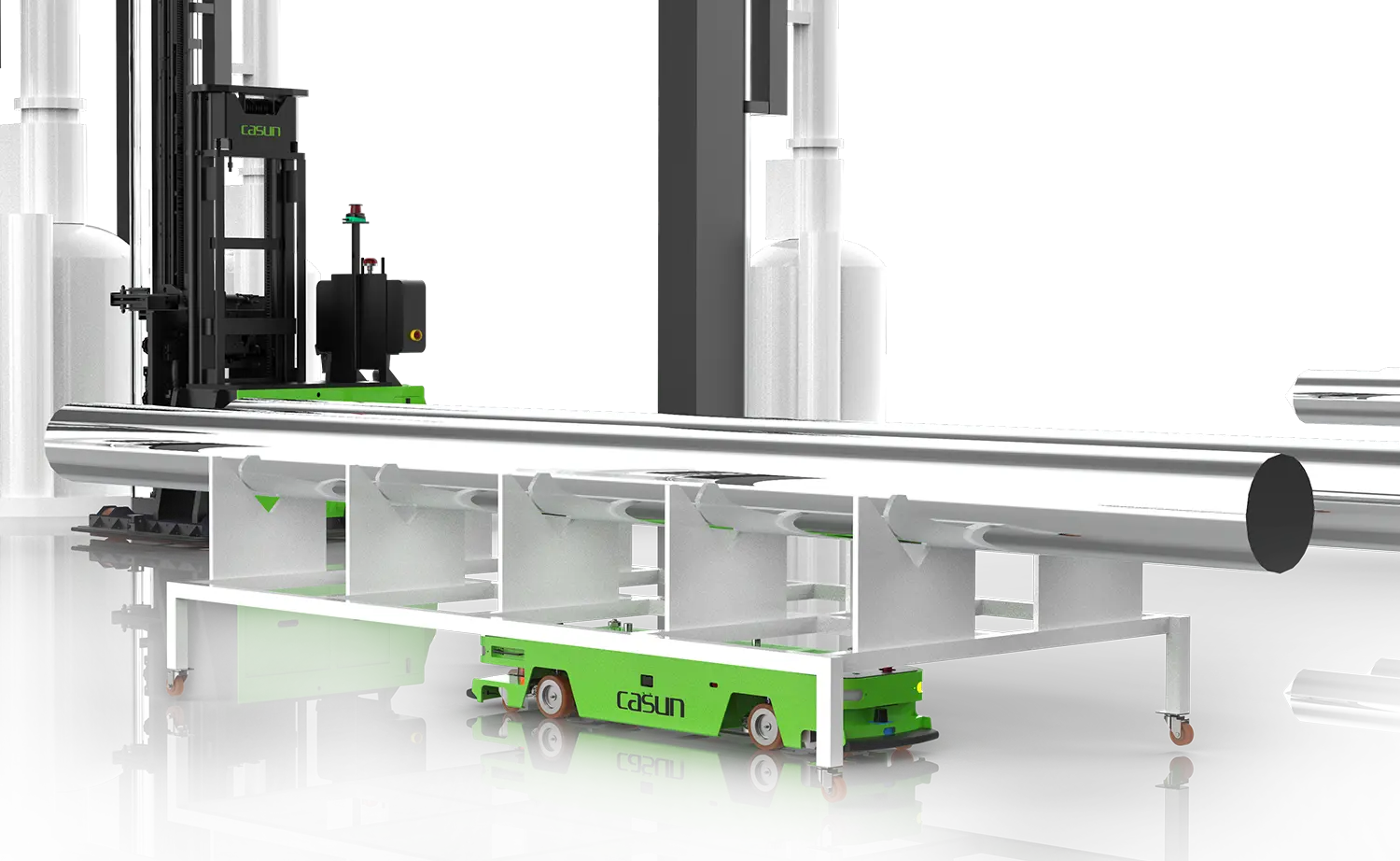

The working mode is that the AGV automatically lurk to the bottom of the trolley after receiving the system instruction, and automatically hooks the trolley through the traction bar to achieve end-to-end transfer. It can also be composed of multiple AGVs to form a flow production line to achieve flexible production in the factory. At present, it has been widely used in new energy photovoltaic, automobile and parts industry, new energy lithium battery industry.

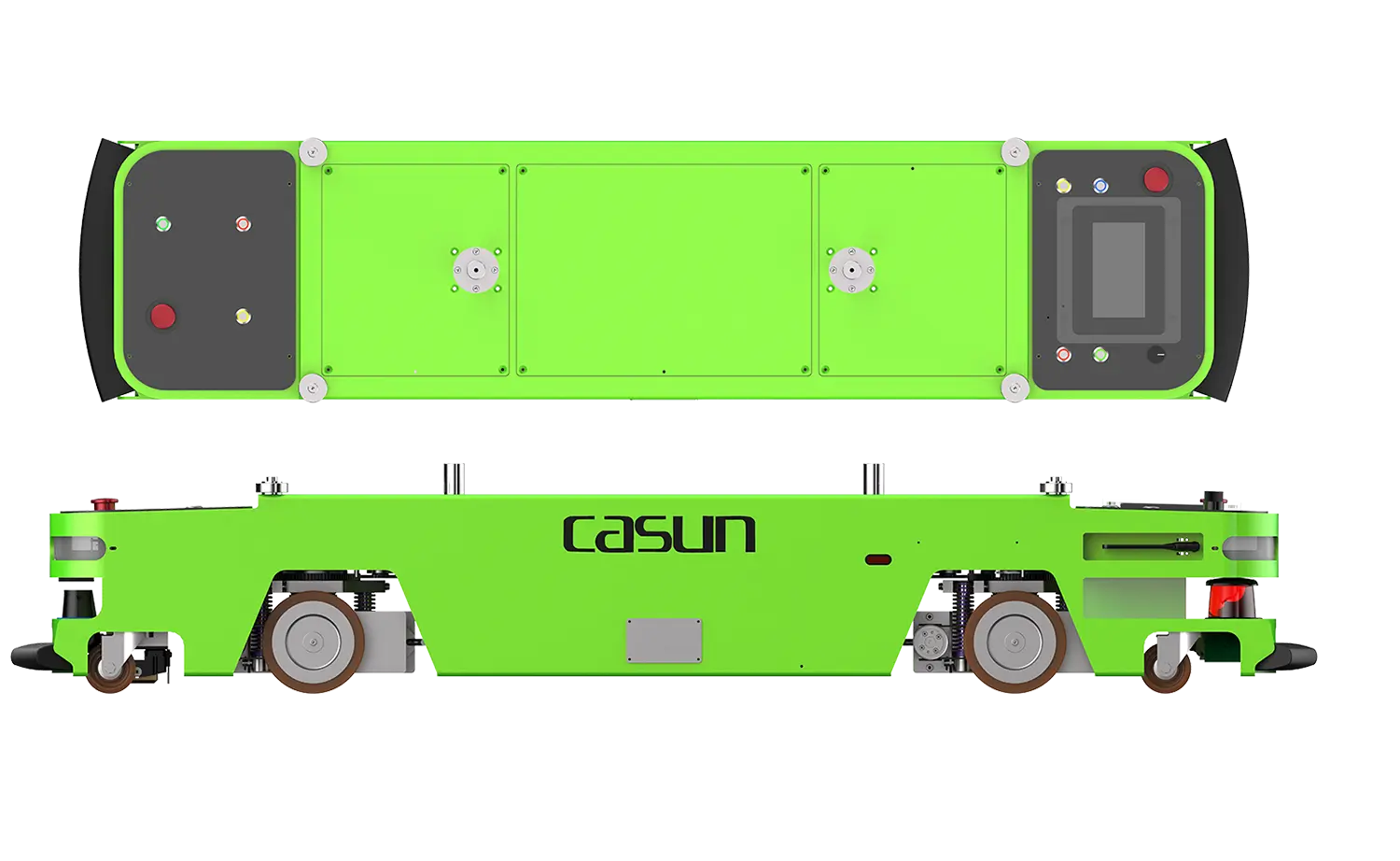

| Basic Parameters | Dimension | L1900*W420*H328（mm） |
| Max payload | 1000kg | |
| Weight | 362kg | |
| Turning radius | 1000mm | |
| Navigation Performance | Navigation mode | SLAM navigation / QR code navigation |
| Navigation accuracy | ±10mm | |
| Stop accuracy | ±10mm | |
| Movement Performance | Moving direction | Forward,backward, turn left and righ |
| Drive mode | Differential drive | |
| Acceleration | 0.2m/s² | |
| Max moving speed | 45m/min | |
| Max climbing capability | ≤3° | |
| Battery Performance | Battery type | Lithium battery |
| Charging mode | Side charging / Ground charging | |
| Charging time | Charging time after full discharging≤1H | |
| Rated endurance | 8H | |
| Network | Communication | WiFi / 5G |
| Protective Performance | Safety warning | ●Light warning ●Voice broadcast |
| Safe sensing range | ≤3m adjustable | |
| Safety protection | ● Front and rear obstacle detection sensor ● Mechanical anti-collision mechanism ● emergency stop switch | |
| Application Environment | Working temperature | -10℃ ~ 45℃ |
| Working Environment | No dust, no flammable/explosive/corrosive gases |
Compact design with different load capactiy for option.
Adopt advanced SLAM navigation technology;

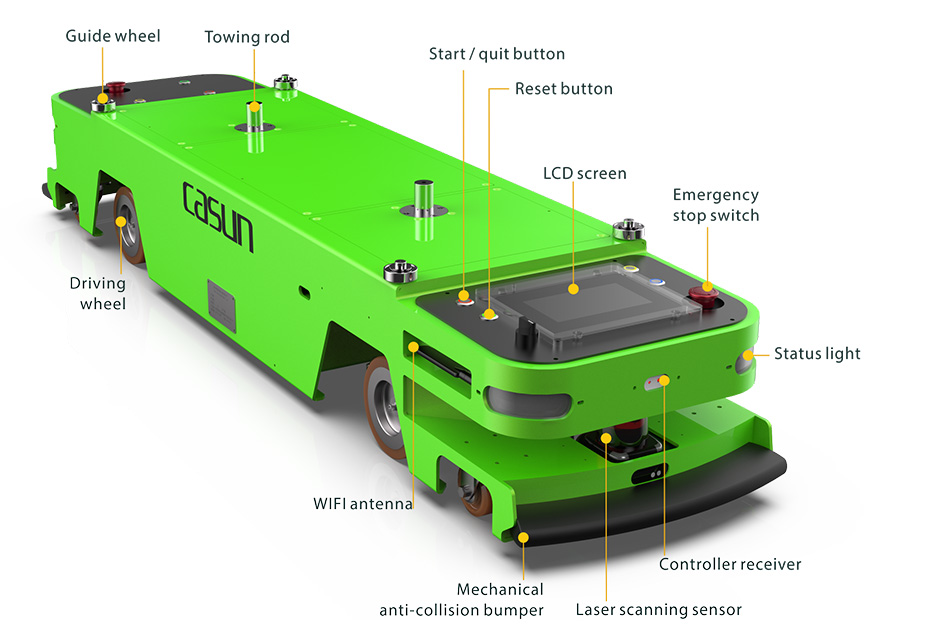

Equipped laser obstacle sensor / mechanical anti-collision bumper / acousto-optic alarm to ensure safe working environment.
CASUN's self-developed Central Management Systems integrate high-frequency wireless communication technology, high-speed database analysis and processing technology, AGV digital control technology, combining on-site requirements to achieve intelligent scheduling of multiple AGVs.
AGVs will move to charge station and do charging job automatically when they are detected to be in low power status, response time can be 24 hours per day so as to increase productivity.
