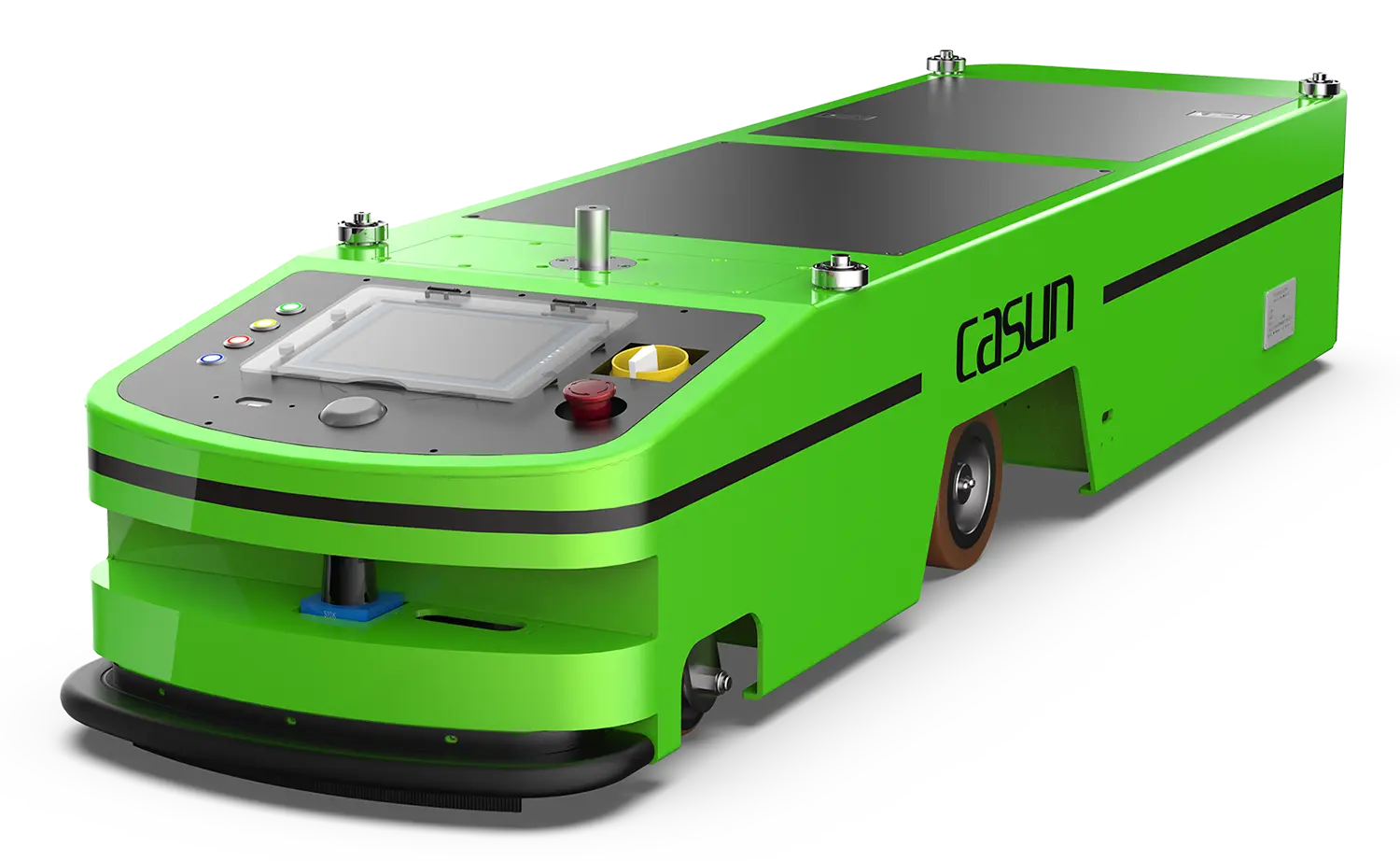

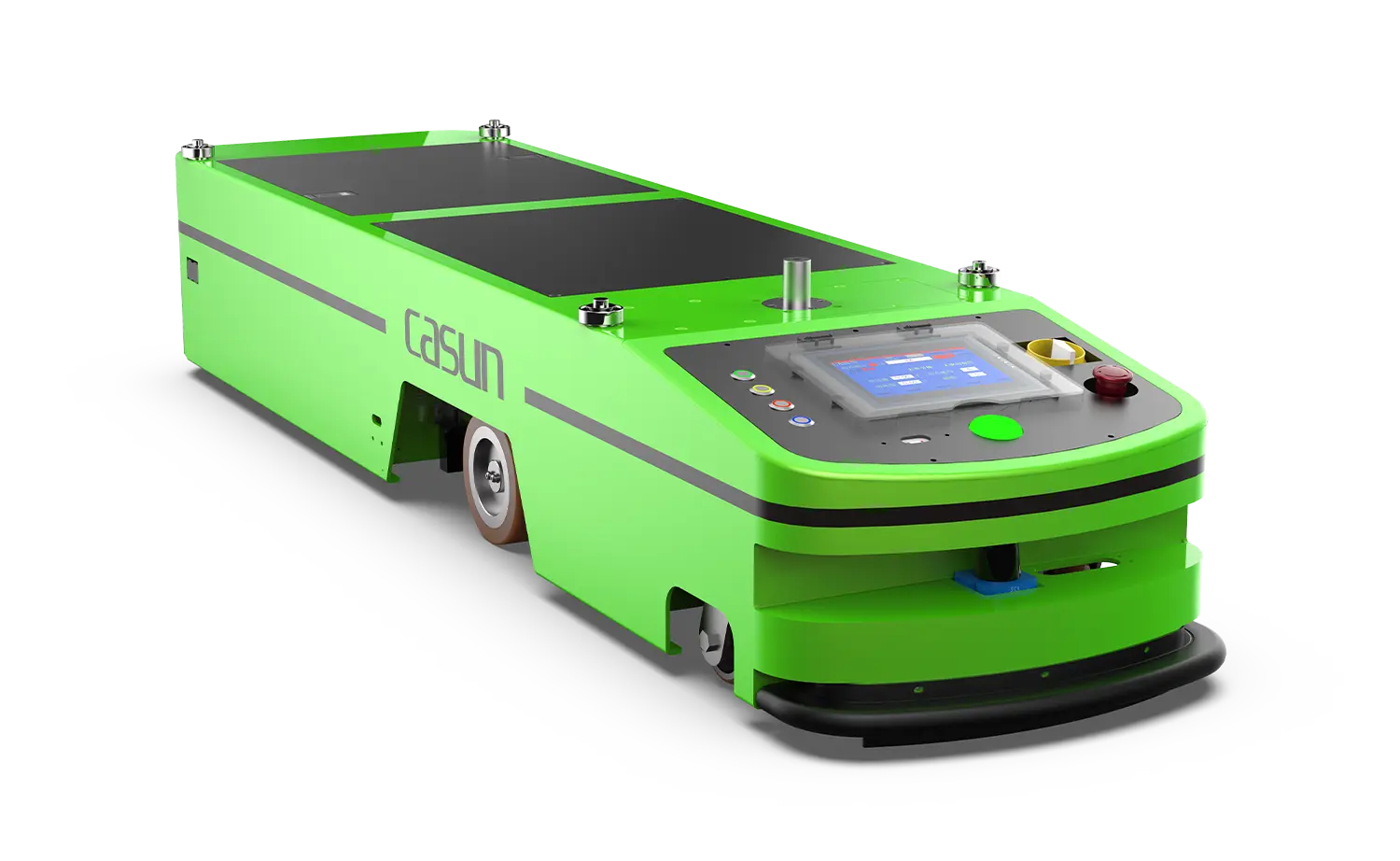

C1-13 One-way latent traction AGV is suitable for a relatively fixed production process. The navigation method is magnetic, and the working method is that the AGV is automatically lurked to the bottom of the dolly after receiving the system instruction then transit at the end.

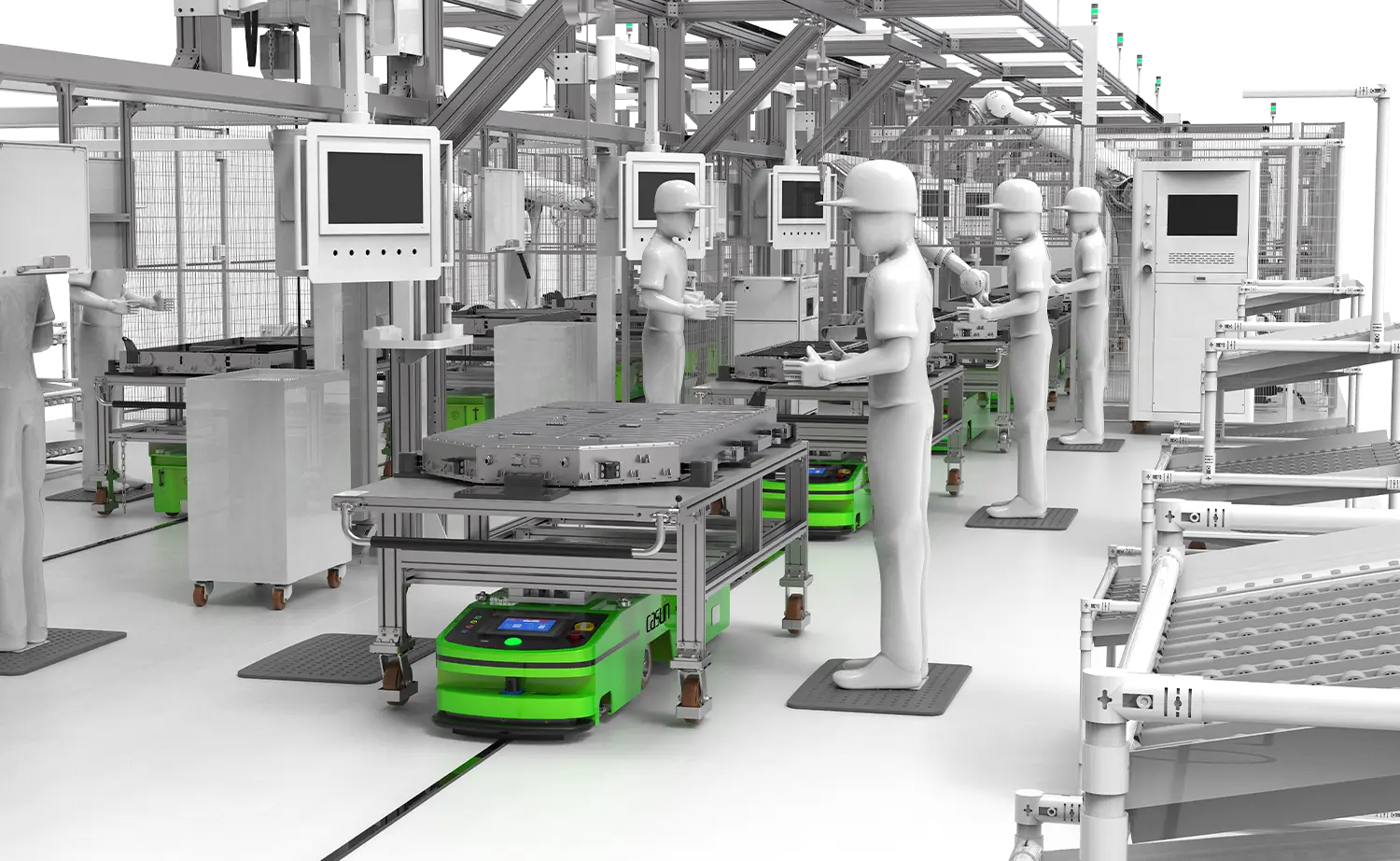

It can also be composed of multiple AGVs to achieve flexible production of the factory. At present, it is mostly used for SPS workshop and lithium battery manufacturing flexible production lines.

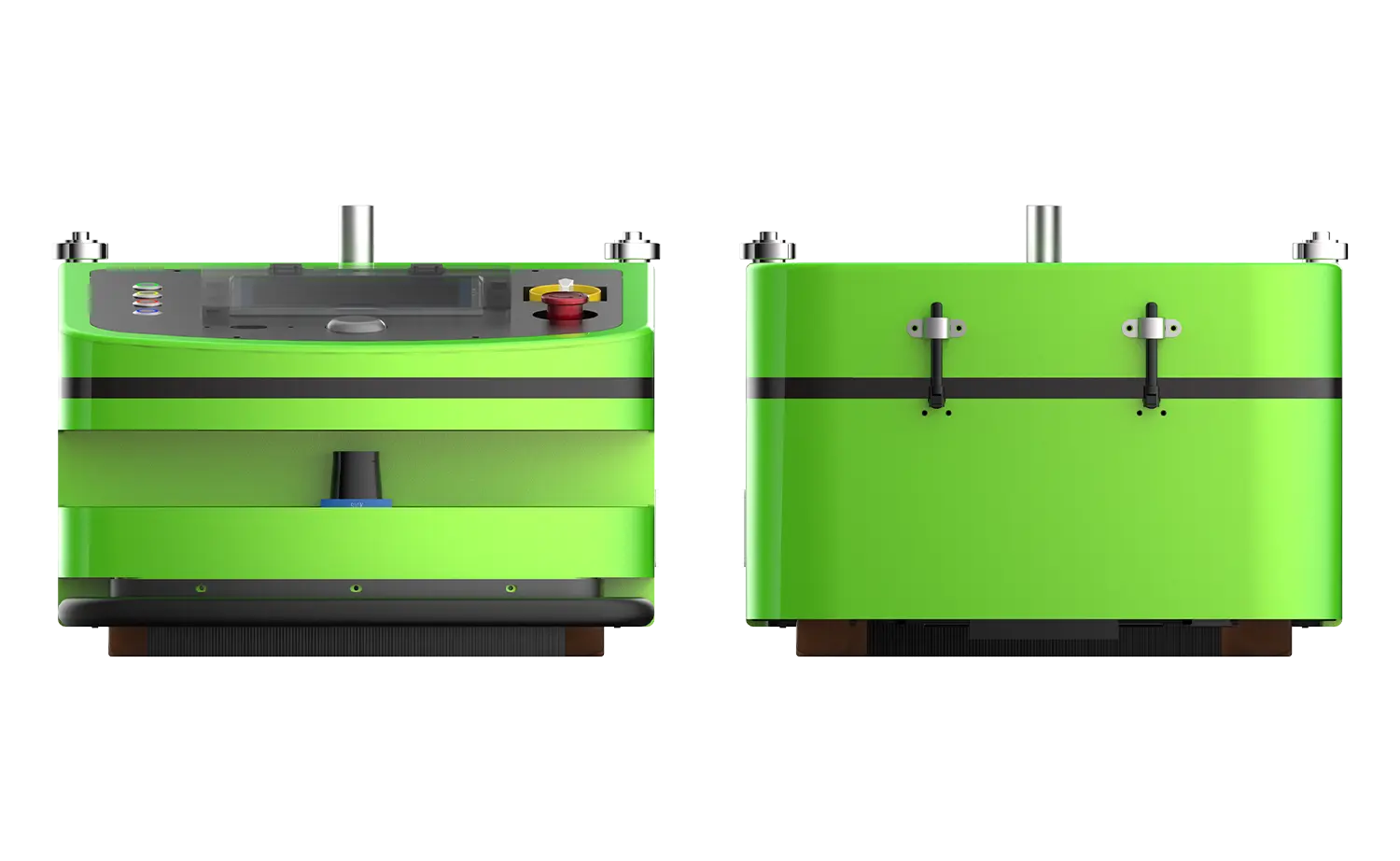

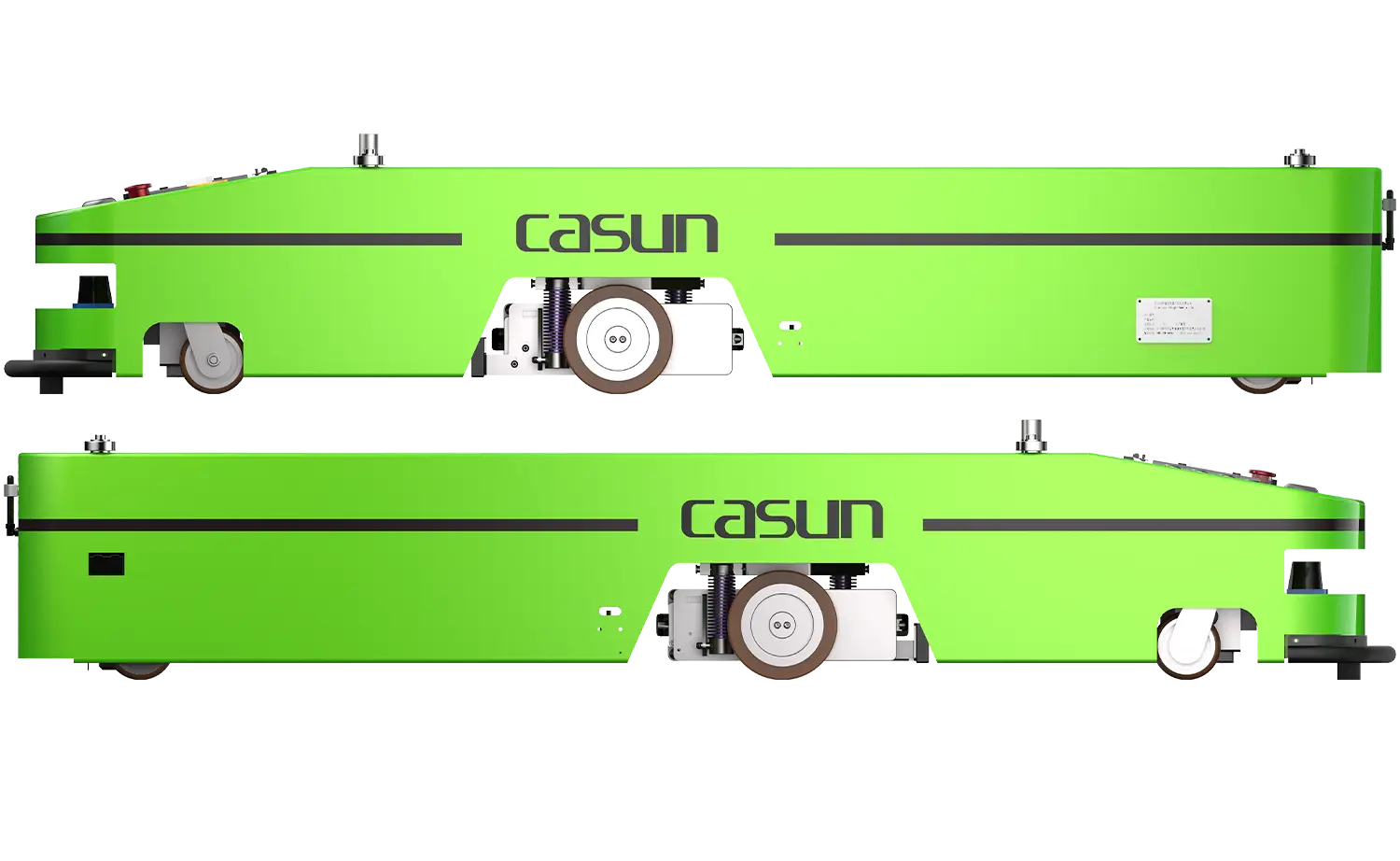

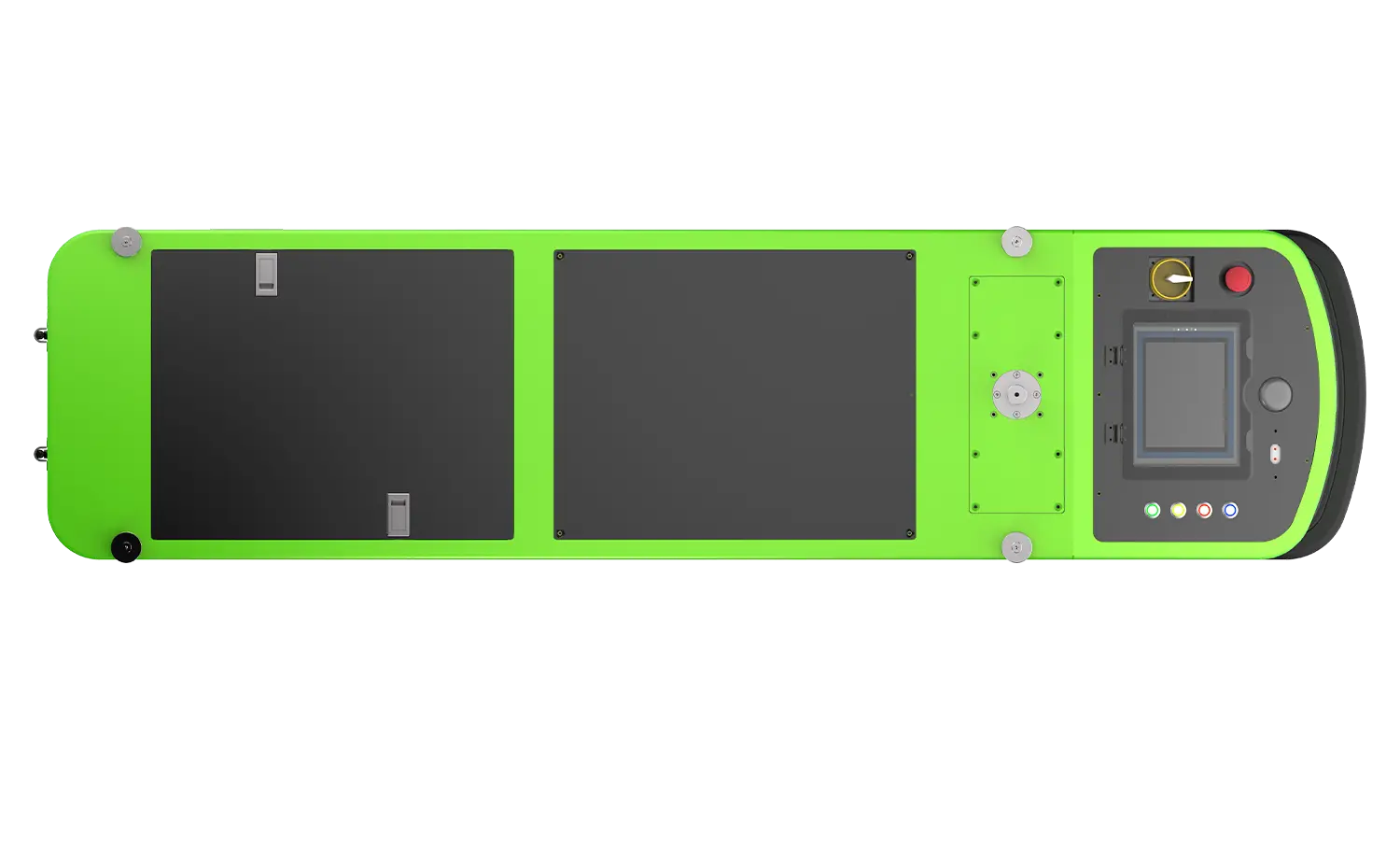

Basic Parameters | Dimension | L2000*W500*H330(mm) |
| Max payload | 2500kg | |
| Weight | 630kg | |
| Turning radius | 1300mm | |
Navigation Performance | Navigation mode | Magnetic |
| Navigation accuracy | ±10mm | |
| Stop accuracy | ±10mm | |
Movement Performance | Moving direction | Forward,turn left/right |
| Drive mode | Differential driving | |
| Acceleration | 0.2m/s² | |
| Max moving speed | Non-loading 45m/min Full-loading 35m/min | |
| Max climbing capability | ≤3° | |
Battery Performance | Battery type | Lithium battery |
| Charging mode | Side charging / Ground charging | |
| Charging time | Charging time after full discharging≤1H | |
| Rated endurance | 8H | |
| Network | Communication | WiFi / 5G |
Protective Performance | Safety warning | ●Light warning ●Voice broadcast |
| Safe sensing range | ≤3m adjustable | |

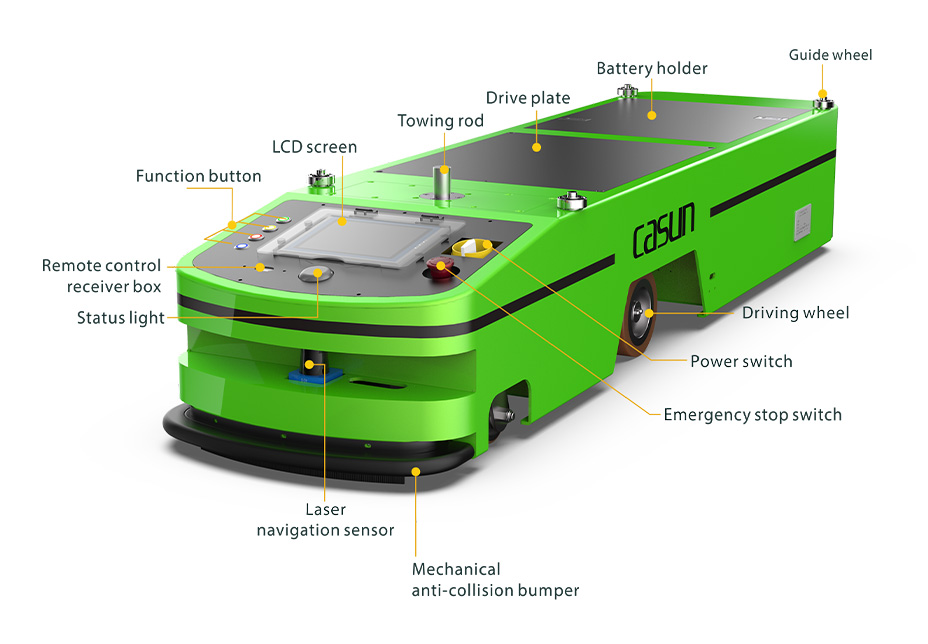

| Safety protection | ●Front obstacle detection ●Mechanical anti-collision design ●Emergency stop switch | |
Application Environment | Working temperature | -10℃ ~ 45℃ |
| Working Environment | No dust, no flammable/explosive/corrosive gases |
The product performance is stable, and there are a large number of mature application cases;
The delivery cycle is short and the cost performance is high;
Adapt to the lithium battery industry, automobile industry;
Flexible production to ensure smooth production lines;
